Resideo Q3450C1185/U Pilot Burner for Natural Gas (Left Tip)

Brand: RESIDEO
SKU: Q3450C1185/U
Availability: In Stock

Ships same day if ordered by 12 pm
$123.80
$123.80
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

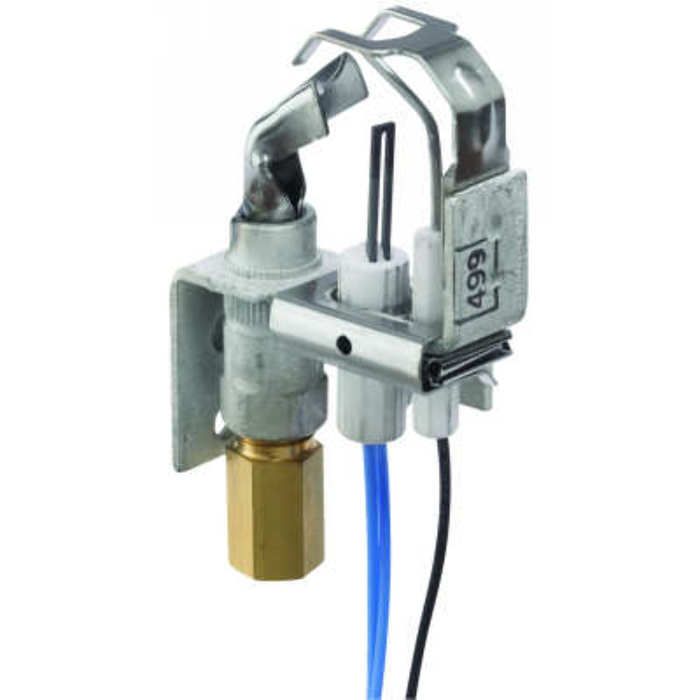

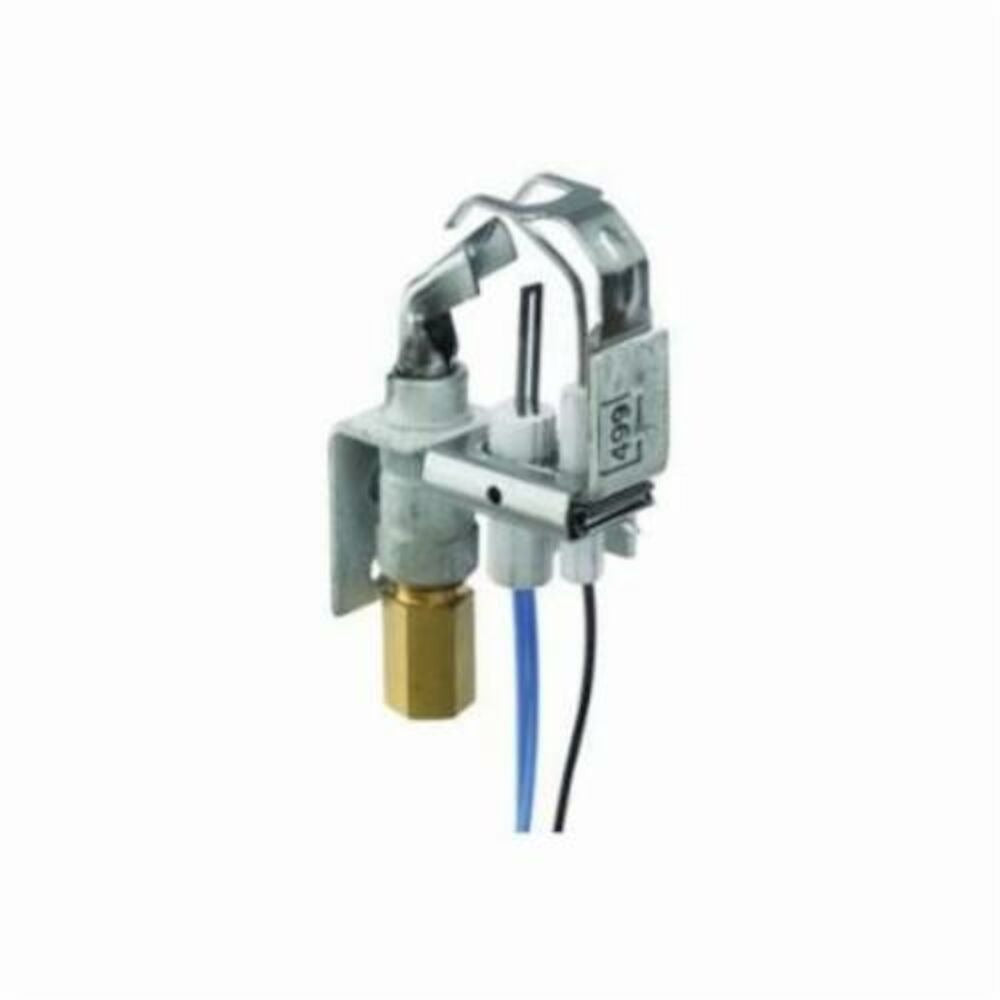

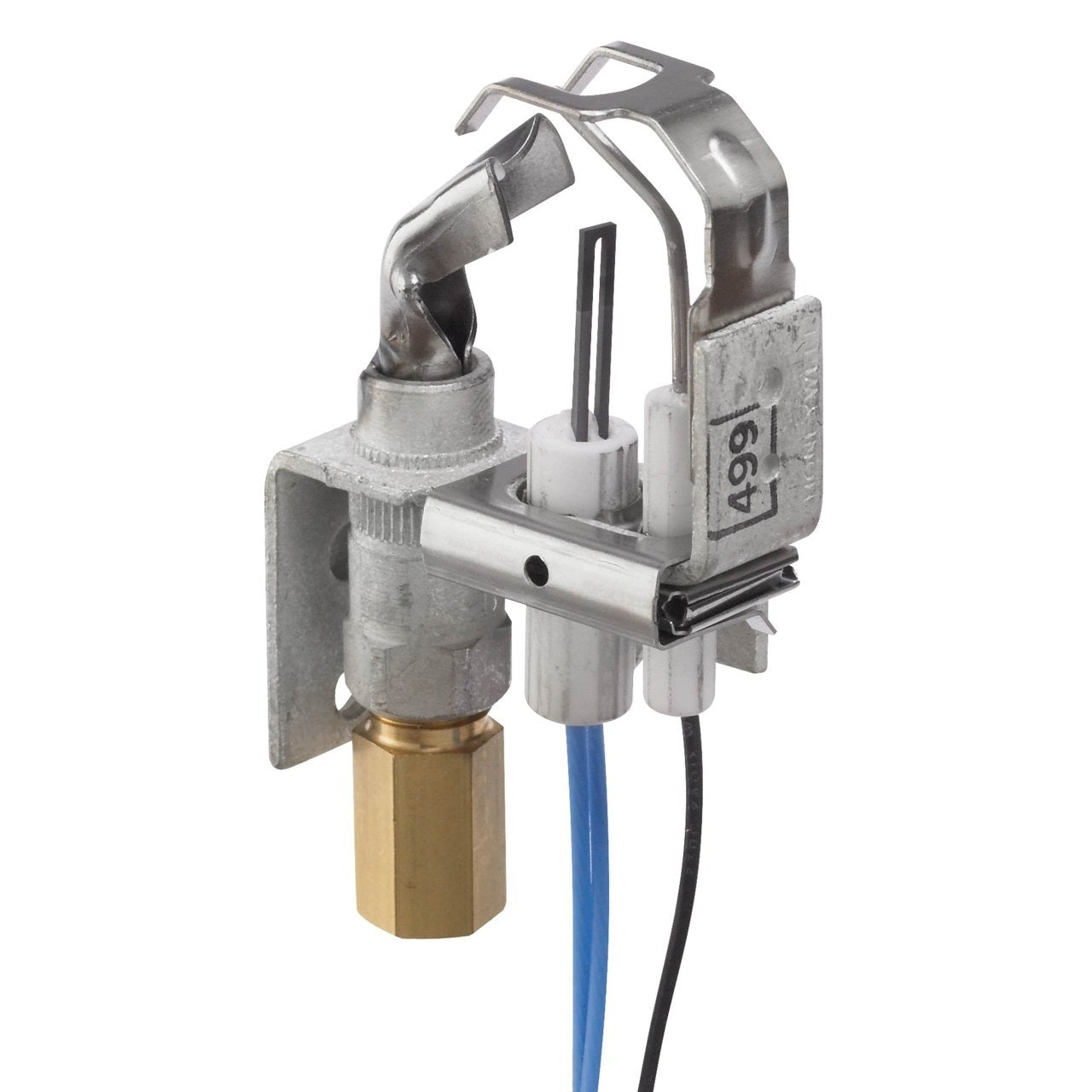

The Resideo Q3450C1185/U is a pilot burner assembly for natural gas that includes a BCR-18 orifice, left single tip target, and C-style mounting bracket. The assembly provides pilot flame ignition and sensing and contains a bracket, pilot target, ground electrode, replaceable igniter/flame rod, orifice assembly, compression fitting and spring clip. It is configured for primary aeration and is compatible with Resideo SmartValve systems.

  • Includes BCR-18 orifice, left single tip target, and C-style mounting bracket for natural gas applications
  • Complete pilot assembly with pilot target, ground electrode, replaceable igniter/flame rod, orifice assembly, compression fitting and spring clip
  • Configured for primary aeration and designed to provide pilot flame ignition and sensing for SmartValve systems

Product Highlights

Pilot burner assembly for natural gas with BCR-18 orifice, left-tip target, C-style bracket, primary aeration, and full pilot ignition/sensing components

Product Information

Standard Information

  • Brand: RESIDEO
  • Manufacturer Part Number: Q3450C1185/U
  • Country of Origin: Import
Technical Specifications
Brand
Resideo
MPN
Q3450C1185/U
Product type
Pilot burner assembly
Fuel compatibility
Natural gas (NG)
Includes
Bracket, pilot target, ground electrode, replaceable igniter/flame rod, orifice assembly, compression fitting, spring clip
Orifice included
BCR-18
Orifice options
BCR-18, BCR-20, BCR-22, BCR-12
Tip style
Left single tip (target tip)
Mounting bracket
C-style
Aeration type
Primary
Air tube length
30 in
Compression fitting
1/4 in diameter x 1-1/4 in length
Replaceable igniter assembly
Q3400A
Connection
Integral keyed plug for igniter and sensor
Flame patterns
Front or 20 degree right/left selectable
Compatible systems
Resideo SmartValve systems (Q3450 series); referenced use with SV9500 and SV9600
Lead wire temperature rating
250 C
