Honeywell Q340A1108/U Universal Thermocouple 30mV Output 48 inches Length

Product Description

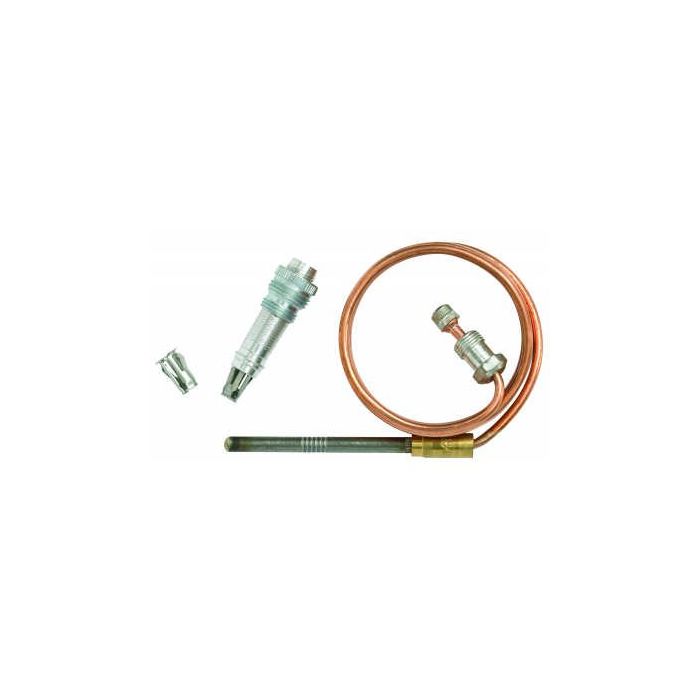

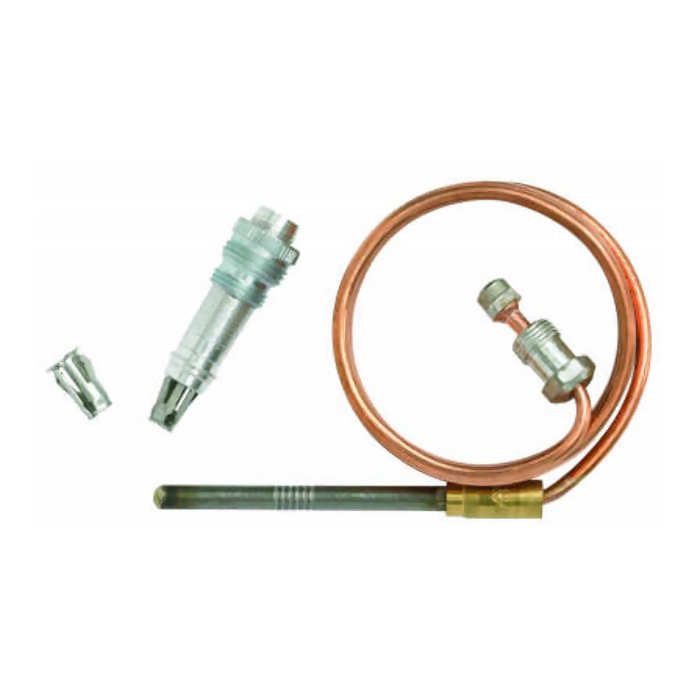

The HONEYWELL Q340A1108/U Universal Thermocouple is designed for standing pilot gas-fired heating systems. It senses the pilot flame, producing a temperature differential to generate 30 mV output. This 48-inch lead thermocouple includes an adapter and push-in clip for installation, ensuring safety control in various applications.

• Universal Thermocouple design for broad compatibility.
• Generates 30 mV output for reliable system operation.
• Features a 48-inch lead with adapter and push-in clip for easy installation.

Product Highlights

Senses pilot flame in gas-fired heating systems, providing 30 mV output with a 48-inch lead.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: Q340A1108/U

Technical Specifications

• Brand: Honeywell
• MPN: Q340A1108/U
• National Stock Number: 6685-00-003-6137
• Output Voltage: 30 mV
• Lead Length: 48 inches
• Connector Type: 11/32 32 Male Connect Nut
• Resistance: 0.03 ohms
• Included Components: Adapter And Push In Clip
• Model: Q340
• Type: Universal
• Temperature Measuring Range: 1400 Deg F (Hot Junction), 780 Deg F (Cold Junction)
• Application: Pilot Burner, Standing Pilot Gas Fired Heating System, Safety Control Power Unit
• Approval: Csa
• Open Circuit Output: 26 To 32 Millivolt
