Honeywell Q340A1090/U Universal Thermocouple 30Mv 36 inches Length

Product Description

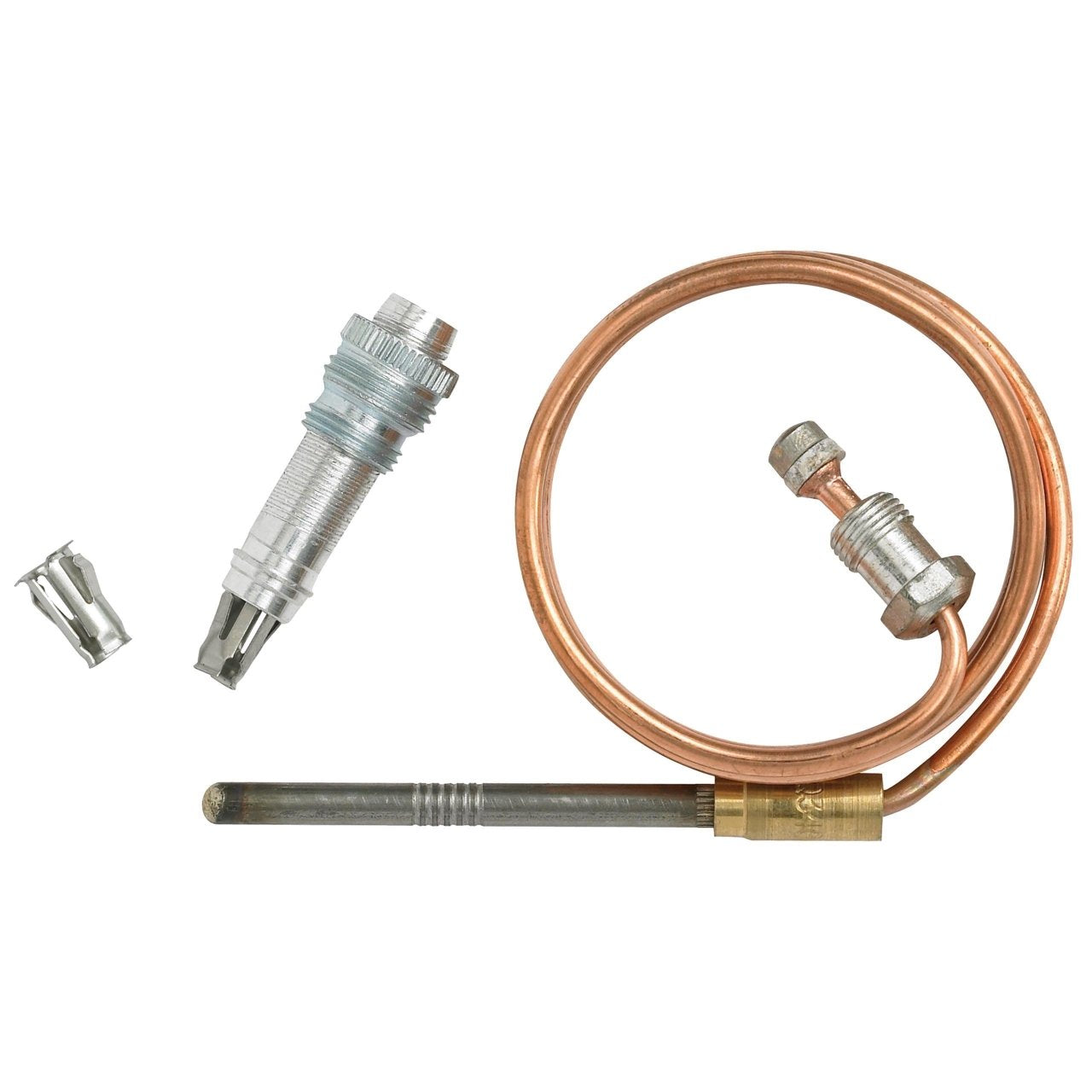

The HONEYWELL Q340A1090/U universal thermocouple with 30Mv output and 36" length senses the pilot flame on standing pilot gas-fired heating systems. The pilot flame heats the tip of the thermocouple, producing a temperature differential to generate 30 millivolts. It includes an adapter and push-in clip for easy installation.

• Universal Thermocouple
• 30Mv Output
• 36" Length

Product Highlights

The HONEYWELL Q340A1090/U universal thermocouple is suitable for various gas-fired heating systems. It ensures reliable pilot flame sensing with its 30mV output and easy installation.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: Q340A1090/U
• Country of Origin: United States

Technical Specifications

• Brand: Honeywell
• MPN: Q340A1090/U
• Item Model Number: Q340A1090/U
• Package Dimensions: 4.57 x 4.53 x 0.75 inches
• Application: 30 mV Thermocouple for Standing Pilot Applications
• Compatible With: Gas-fired Systems
• Universal: Yes
• For Use With: Q303 Pilot Burners (with adapter), Q308 Pilot Burners (with adapter), Q314 Pilot Burners (with adapter), Q324 Pilot Burners (with adapter), Q327 Pilot Burners (with adapter)
• Includes: Push-in Clip, Split Nut, Adapter Assembly
• Lead Wire Length: 36 in, 914 mm
• Cold Junction Temperature Rating (Max): 780 °F, 416 °C
• Hot Junction Temperature Rating (Max): 1400 °F, 760 °C
• Connection Type: 11/32 32 Male Connector Nut
• Open Circuit Output (Max): 26 to 32 mV
• Open Circuit Output (Min): 18 mV
• Operating Voltage: 30 mV
• Manufacturer: Honeywell
• Number of Items: 1.0
• Product Type: ELECTRONIC_COMPONENT
• Size: 36 in Lead Length
• Catalog Number: 10P28
• Model/Part Number: Q340A1090/U
• Base Unit of Measure: Unit(S)
• EAN / UPC: 66255117100
• Type: Universal Thermocouple
• Gross Weight: 0.14 LB
• Series: Q340A Series
• Additional Information: 30 mV; 36" Length
• Domestic/Import: Import
• Gas Type: Liquid Propane Gas, Natural Gas
• Lead Length: 36 in
• Resistance: 0.02 Ohm
• Voltage Rating: 30 mV
