Honeywell Q340A1074/U Universal Thermocouple 30 mV (24 inch) Q390A1046/U

Product Description

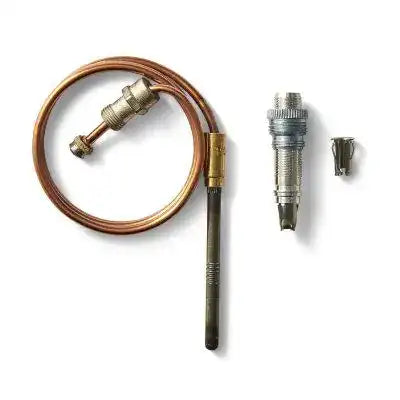

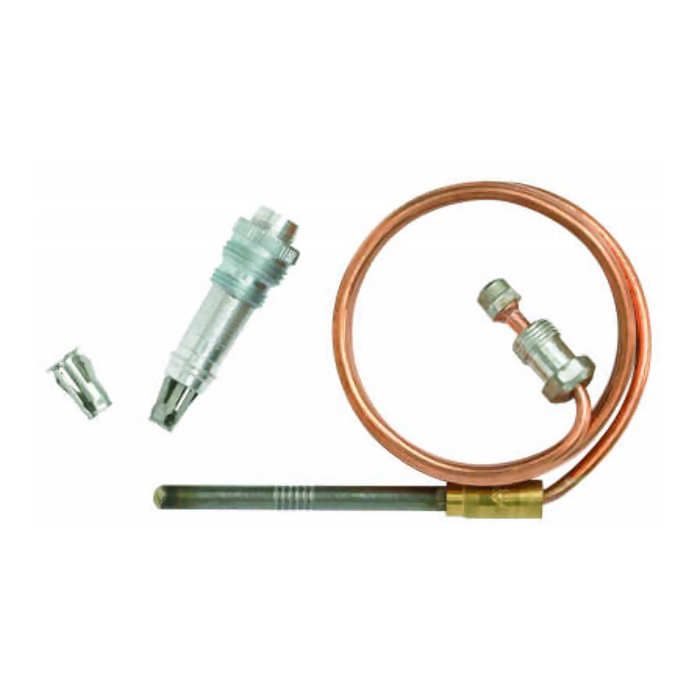

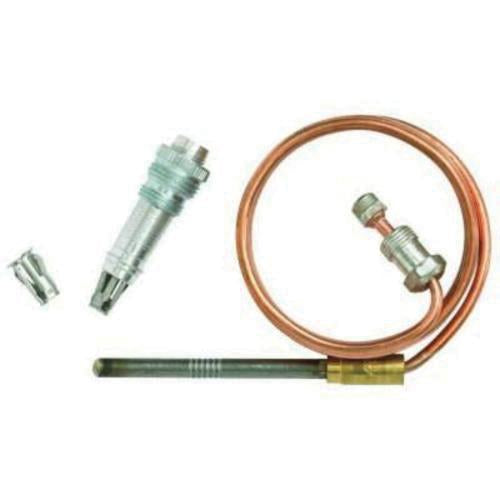

The Honeywell Q340A1074/U is a universal thermocouple that produces a nominal 30 mV output with a 24 inch lead for pilot flame sensing in standing pilot gas-fired heating systems. It uses a screw-type connector and has low circuit resistance for millivolt gas control compatibility. The assembly can include an adapter and push-in clip and is suitable for use with Pilotstat safety control power units and similar valves.

• Nominal output: 30 mV (open-circuit reported 26 to 32 mV); resistance approximately 0.02 ohm
• Lead length: 24 inch; connector: screw-type (11/32-32 male connector nut reported in some listings)
• Includes adapter and push-in clip; CSA certification reported for certain listings; rated for pilot burner/standing pilot applications

Product Highlights

Universal 24 inch thermocouple for pilot flame sensing with 30 mV output, low resistance, and installation hardware included

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: Q340A1074/U
• Country of Origin: Import

Technical Specifications

• Brand: Honeywell
• MPN: Q340A1074/U
• Type: Universal thermocouple
• Series: Q340A Series
• Output Voltage: 30 mV (nominal)
• Open Circuit Output: 26 to 32 mV
• Resistance: 0.02 ohm (approximate)
• Lead Length: 24 inches
• Connector Type: Screw / 11/32-32 male connector nut
• Includes: Adapter and push-in clip
• Temperature Rating (Hot Junction): 1400 °F (760 °C)
• Temperature Rating (Cold Junction): 780 °F (416 °C)
• Approval / Certifications: CSA (reported in some listings)
• Application: Pilot burner and standing pilot gas-fired heating systems; compatible with Pilotstat safety control power units
• Replaces: Q390A1046/U
• Country of Origin: United States
