Honeywell Q327A1626 Pilot Burner Liquid Propane Natural Gas 0.026 Inch Orifice Batwing Tip Primary Aeration

Product Description

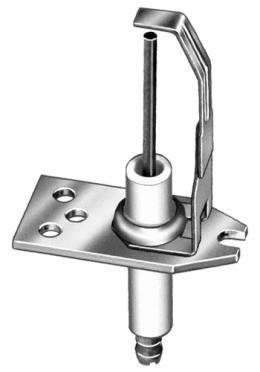

The Honeywell Q327A1626 Pilot Burner is designed for standing pilot applications using liquid propane or natural gas. With a 0.026 inch orifice and batwing tip style, this pilot burner provides efficient ignition for main burners. It includes a special mounting bracket with screws for easy setup.

• Primary aeration
• Variety of mounting brackets and tip styles
• Interchangeable orifice and inlet fittings

Product Highlights

This Honeywell pilot burner is suitable for Q309, Q340 thermocouples, or Q313 thermopiles. It offers a variety of mounting options and flame patterns. Suitable for both residential and commercial heating systems.

Product Information

Standard Information

• Brand: Honeywell
• MPN: Q327A1626

Technical Specifications

• Gas Type: Liquid Propane/Natural Gas
• Orifice Size: 0.026 inch
• Tip Style: Batwing
• Aeration: Primary
• Mounting Type: Style B Bracket
• Connection Type: 1/4 inch compression
• Dimensions: 3/4 inch L x 1-14/25 inch W x 3 inch H
• Direction of Front Tip: 1 inch wing span
