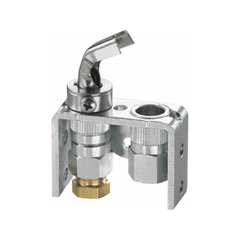

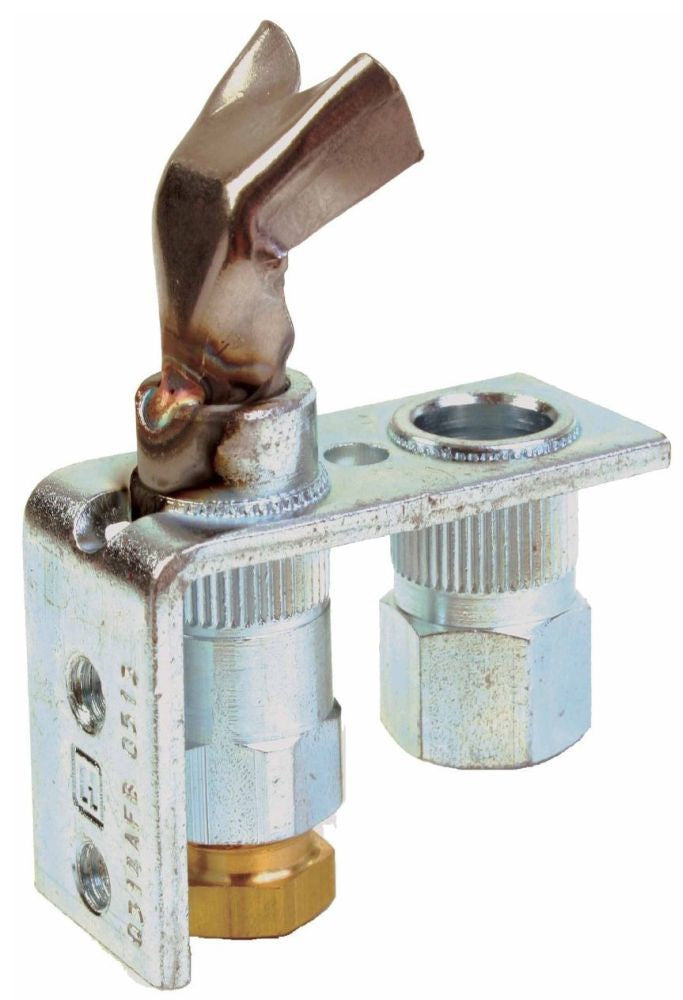

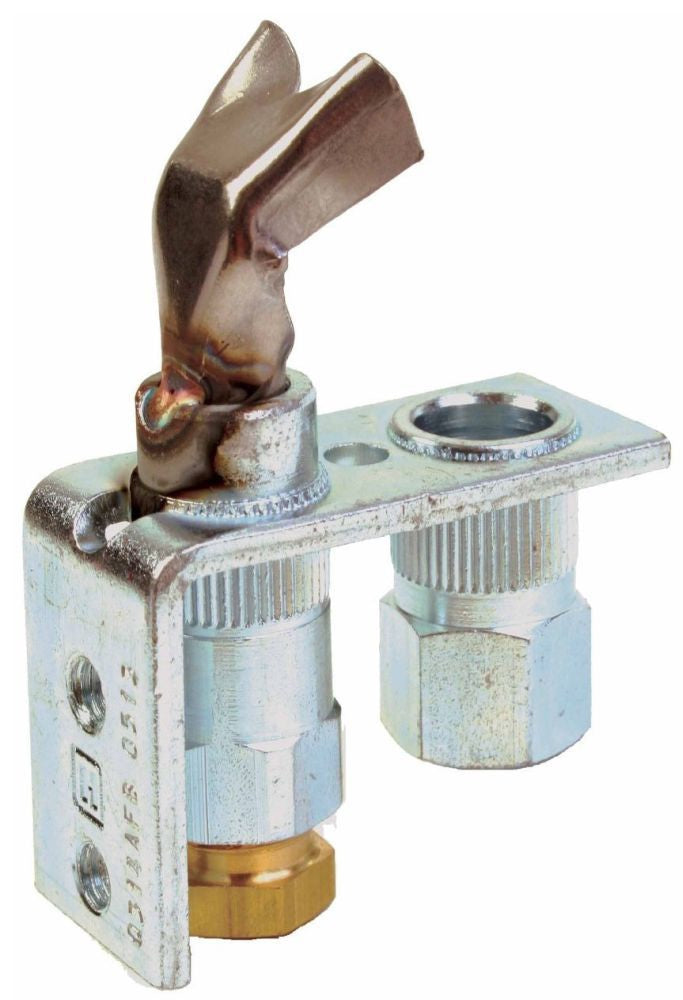

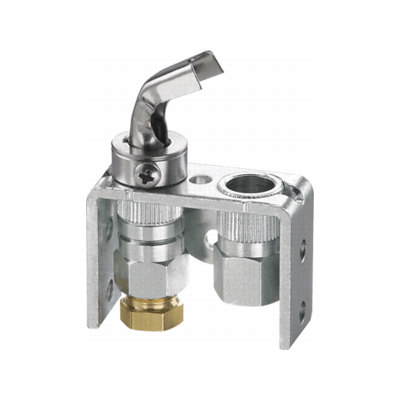

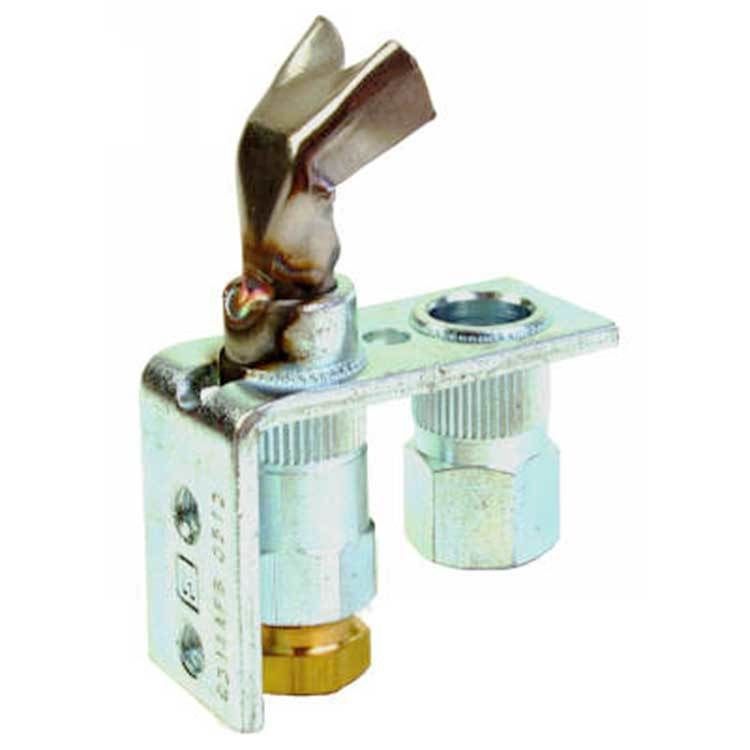

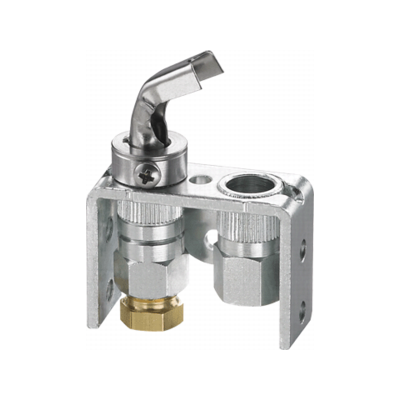

Honeywell Q314A6102/U Standing Pilot Burner for Natural Gas BCR-18 BBR-10 (Right Single-Tip)

Product Description

The Honeywell Q314A6102/U is a standing pilot burner assembly for natural gas that includes BCR-18 and BBR-10 orifices and a right single-tip configuration. It is a non-primary aerated, insert-orifice pilot designed for main burner ignition and replacement in furnaces and gas appliances. The unit accepts a 1/4 inch compression connection and is compatible with Honeywell thermocouples and thermopiles for pilot sensing and ignition.

• Standing pilot burner for natural gas with included BCR-18 and BBR-10 orifices; right single-tip style
• Non-primary aerated, insert-orifice design with 1/4 inch compression fitting and mounting bracket adapter (B to A)
• Compatible with Q309, Q340, Q390 thermocouples and Q313 thermopiles; CSA certified; used for pilot ignition in furnaces and gas appliances

Product Highlights

Standing pilot burner assembly for natural gas with BCR-18 and BBR-10 orifices, right single-tip, 1/4 inch compression, compatible with Honeywell thermocouples/thermopiles.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: Q314A6102/U
• Country of Origin: United States

Technical Specifications

• Brand: Honeywell
• MPN: Q314A6102/U
• Model: Q314A6102/U
• Product Type: Standing pilot burner
• Fuel Type: Natural Gas
• Orifices Included: BCR-18, BBR-10
• Orifice Sizes: BBR-10 (0.010 inch), BCR-18 (0.018 inch)
• Tip Style: Right single-tip
• Tip Direction: Right
• Aeration: Non-primary aerated
• Compression Fitting: 1/4 inch
• Connection: 1/4 inch compression connection
• Mounting Bracket: B (includes adapter to convert B to A)
• Compatible With: Q309, Q340, Q390 thermocouples; Q313 thermopiles
• Pilot Type: Standing pilot
• Certifications: CSA certified
• Country of Origin: United States
• Package Dimensions: 6.26 x 2.87 x 0.75 inches
• Package Weight: 2.47 ounces
• Product Dimensions: 1.5 x 0.6875 x 1.5625 inches
• Unit Count: 1 Count
• UPC: 085267066754
• ASIN: B071GRB336
