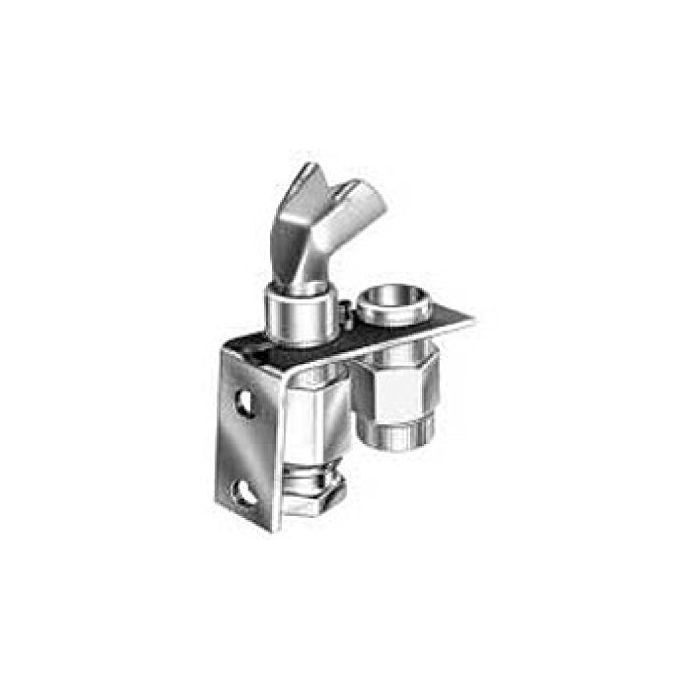

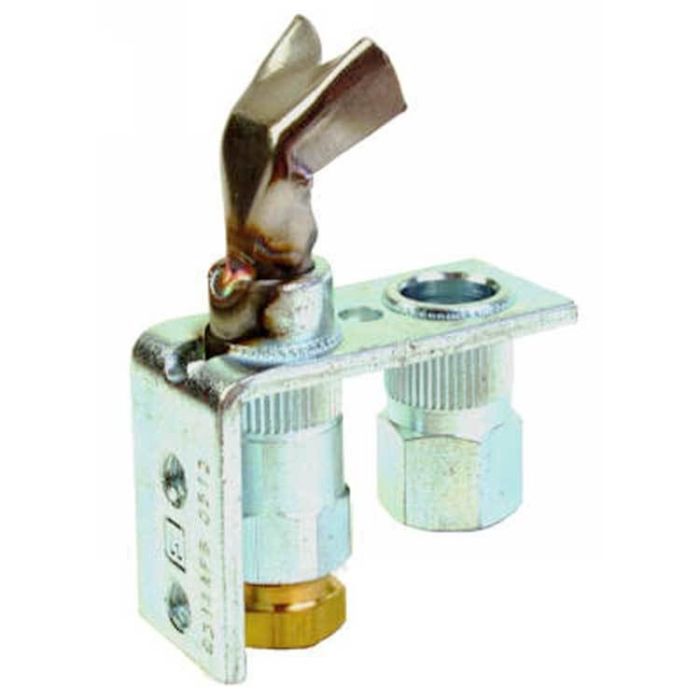

Honeywell Q314A6094/U Standing Pilot Burner for Natural Gas (Left) Replacement Q314A6094/U

Product Description

Honeywell Q314A6094/U is a standing pilot burner for natural gas that includes BCR-18 and BBR-10 orifices and uses a left single-tip configuration. The unit is a non-primary aerated, insert-orifice pilot intended for replacement or assembly in HVAC controls and gas-fired equipment. The burner accepts interchangeable, color-coded orifice and inlet fittings.

• Standing pilot burner for natural gas with BCR-18 and BBR-10 orifices
• Left single-tip orientation; non-primary aerated, insert-orifice design
• Accepts interchangeable, color-coded orifice and inlet fittings

Product Highlights

Standing pilot burner for natural gas, left single-tip, includes BCR-18 and BBR-10 orifices

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: Q314A6094/U

Technical Specifications

• Brand: Honeywell
• Manufacturer Part Number: Q314A6094/U
• Model Number: Q314A6094/U
• Product Type: Standing pilot burner
• Category: HVAC controls
• Gas Type: Natural gas
• Orifices Included: BCR-18 and BBR-10 (includes natural and LP orifices where supplied)
• Pilot Burner Style: Non-primary aerated, insert orifice
• Tip Style: Single tip
• Tip Direction: Left
• Mounting Bracket: B type bracket (includes special mounting bracket with screws to convert B to A)
• Gas Connection: 1/4 in
• Interchangeable Orifice/Inlet: Color-coded orifice and inlet fittings for conversion
• Dimensions: 3.95 x 6.70 x 1.10 inches
• UPC / GTIN: 085267066747
• ASIN: B0721QGG87
