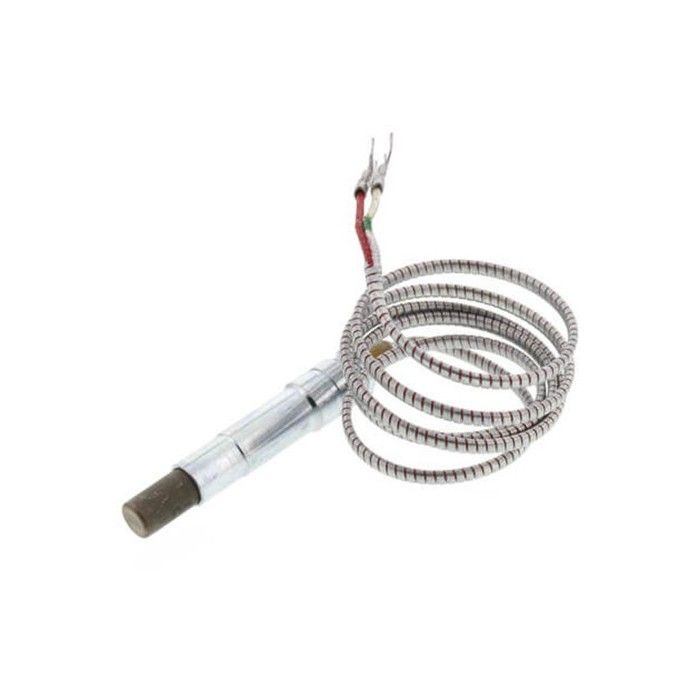

Honeywell Q313A1170/U Replacement Thermopile Generator 750 mV (35 in)

Product Description

The Honeywell Q313A1170/U is a replacement thermopile generator that produces 750 mV to power millivolt gas control systems. The device contains multiple thermocouples wired in series and provides sufficient output to operate automatic millivolt gas controls independent of external power. It features a 35 in lead, spade/quick-connect terminals, 2.89 ohm internal resistance, and includes a PG9 adapter and a 1/2 in thermopile attaching nut.

• Output: 750 mV from multiple thermocouples in series; internal resistance 2.89 ohm
• Physical: 35 in probe/lead with spade or quick-connect terminals; includes male nut connector for Pilotstat units
• Accessories and installation: Includes PG9 adapter and 1/2 in thermopile attaching nut; push-in clip, split nut, and adapter assembly for pilot burner installation

Product Highlights

750 mV thermopile generator with 35 in lead and spade/quick-connect terminals; 2.89 ohm resistance; includes PG9 adapter and 1/2 in attaching nut for pilot burner installation.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: Q313A1170/U

Technical Specifications

• Brand: Honeywell
• MPN: Q313A1170/U
• Product Name: Replacement Thermopile Generator (Q313 Series)
• Output Voltage: 750 mV
• Resistance: 2.89 ohm
• Probe Length: 35 in
• Terminals: Spade (quick-connect)
• Connection Type: Spade terminal / quick-connect
• Includes: PG9 adapter; 1/2 in thermopile attaching nut; male nut connector
• Temperature Rating: Hot junction up to 1400 °F; Cold junction rating listed as 780 °F (see notes)
• Fuel Compatibility: Liquid propane, natural gas
• Application: Millivolt gas control systems; pilot burners
• Series: Q313 Series
• Dimensions: 4.55 x 4.55 x 0.70 in
