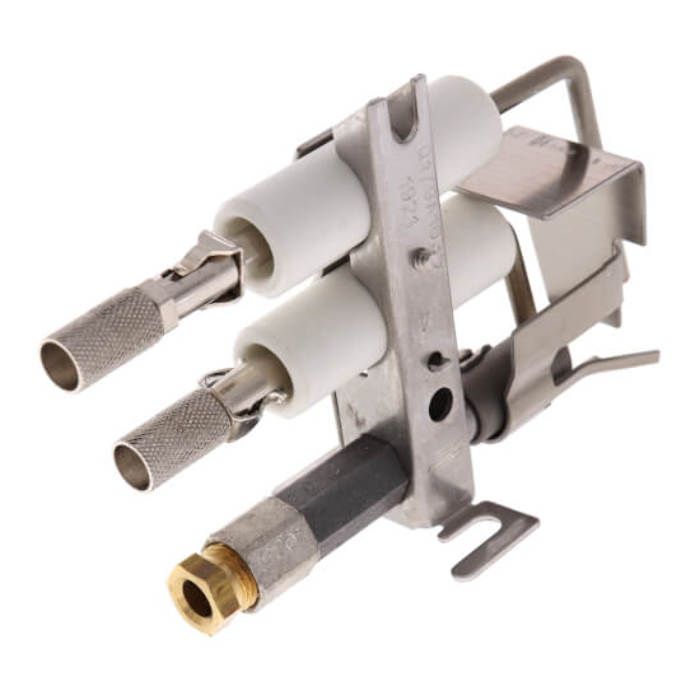

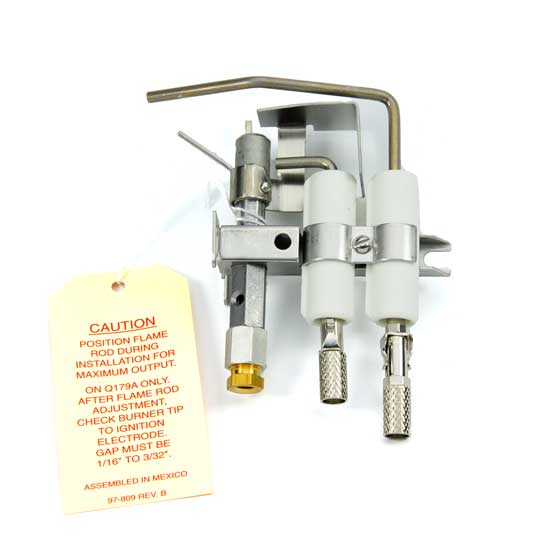

Honeywell Q179A1035/U flame rectifier gas pilot 45 degree

Product Description

The Honeywell Q179A1035/U is a gas pilot assembly designed for intermittent or interrupted ignition applications. It features a 45-degree right-hand port and burner tip style, including flame and ignition electrodes. This assembly utilizes the flame rectification principle to prove the flame, making it suitable for use with Q624 or other suitable ignition transformers and electronic flame safeguard controls in industrial or commercial gas and gas pilot ignited oil burners. It supports side or end mounting.

• Suitable for applications requiring an interrupted or intermittent electrically ignited gas pilot burner.
• Primary aerated burner with stainless steel fins for maximum flame signal and stabilization.
• Stainless steel electrodes mounted in ceramic insulators allow for adjustment.

Product Highlights

Features a 45-degree right-hand port and burner tip style, includes flame and ignition electrodes, and uses flame rectification for reliable flame proving in intermittent or interrupted ignition systems.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: Q179A1035/U

Technical Specifications

• Gas Fitting: 1/4 in. Compression Coupling
• Type Of Gas: Natural
• Gas Consumption: 2.0 cfh
• Mounting Type: Side/End
• Tip Style: 45° Right Hand
• Orifice: 0.025in DIAMETER
