Honeywell Q179A1001 Flame Rectifier Gas Pilot 0.025 Orifice

Product Description

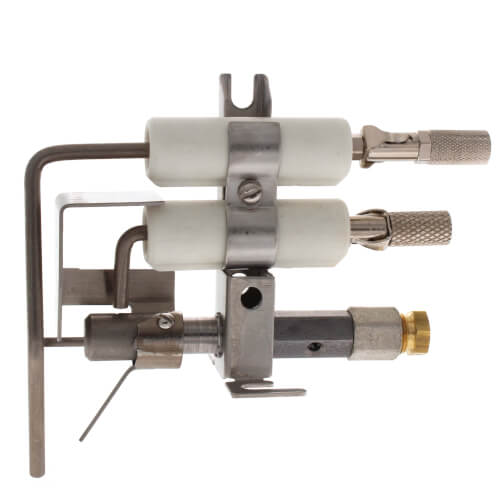

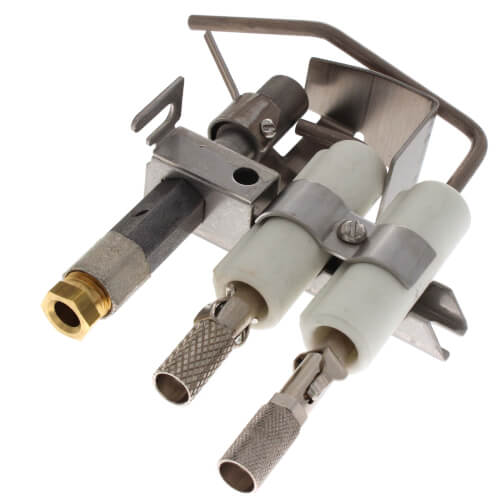

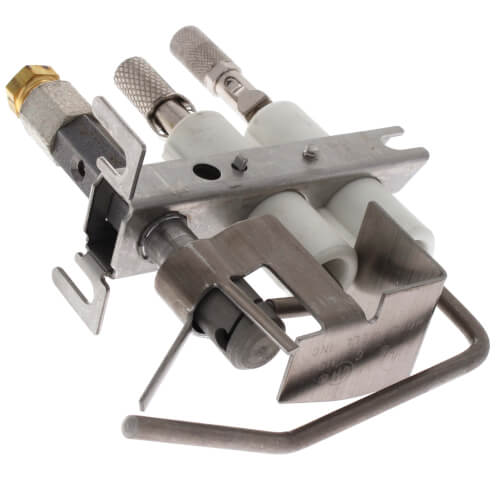

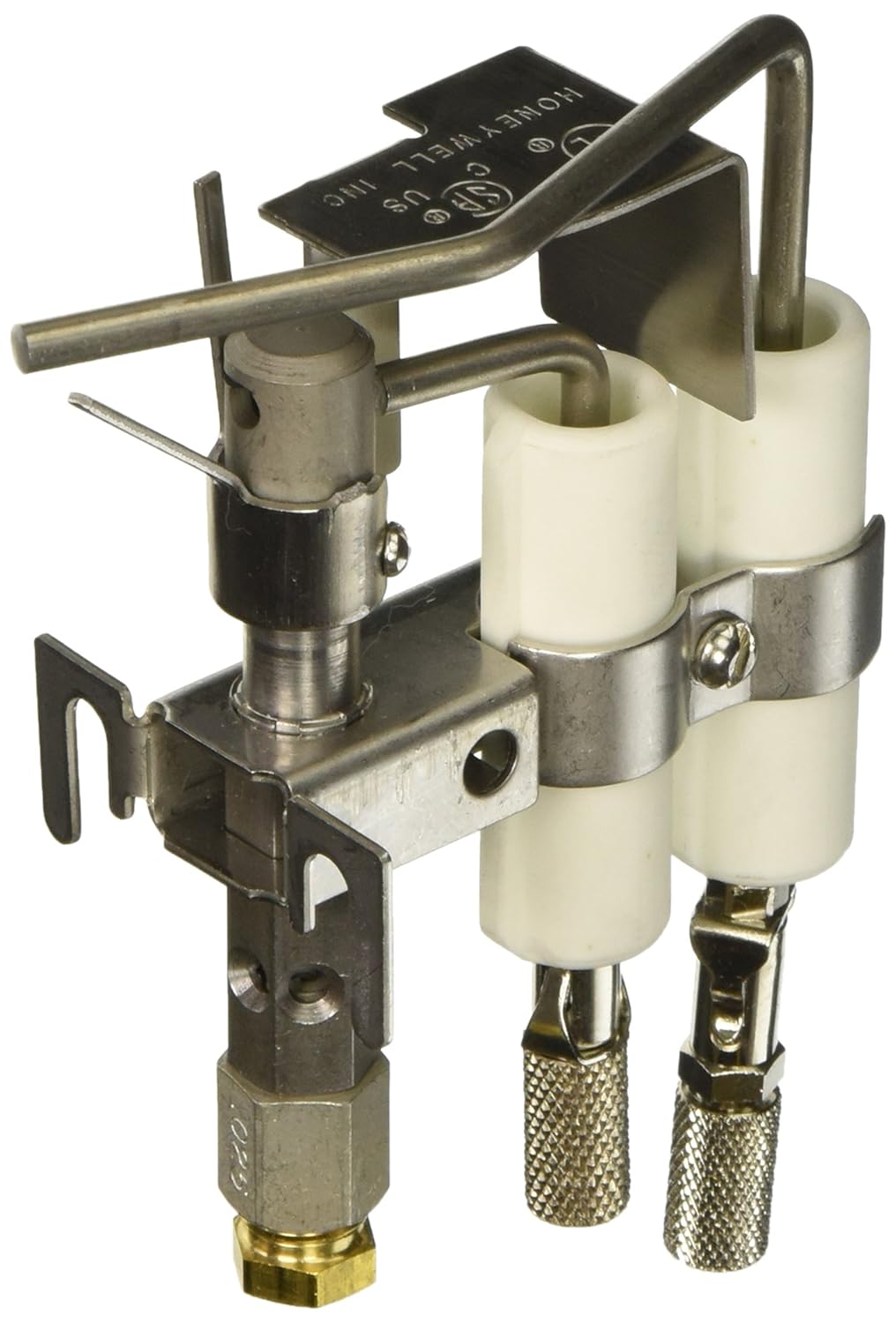

The Honeywell Q179A1001 Flame Rectifier Gas Pilot with a 0.025 orifice is reliable for industrial or commercial applications. This gas pilot burner uses flame rectification to prove the flame.

• Includes a flame electrode rod and ignition electrode
• Primary aerated type burner with stainless steel fins
• Adjustable stainless steel electrode(s) in ceramic insulators

Product Highlights

The Honeywell Q179A1001 is designed for interrupted or intermittent electrically ignited gas pilot burners. It features a primary aerated burner equipped with stainless steel fins and ceramic insulators for electrode adjustment. The Rajah connectors allow easy disconnection, and the bracket supports side or end mounting.

Product Information

Standard Information

• Brand: Honeywell
• MPN: Q179A1001

Technical Specifications

• Orifice Size: 0.025
• Fuel Type: Natural Gas
• Application: For Intermittent or Interrupted Ignition
• Weight: 0.53 lbs
• Dimensions: 6.4 x 3.85 x 2.5 inches
• National Stock Number: 4530-00-196-5845
• Model: Q179A1001
• Connection Type: Rajah connectors
