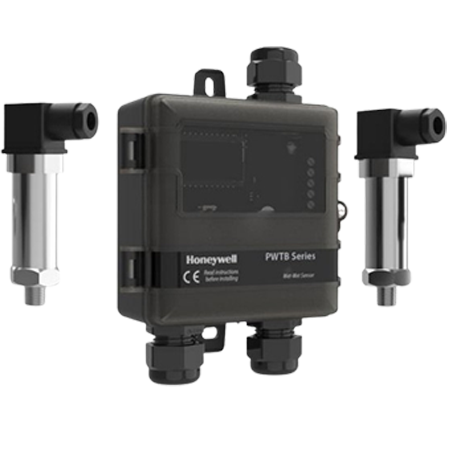

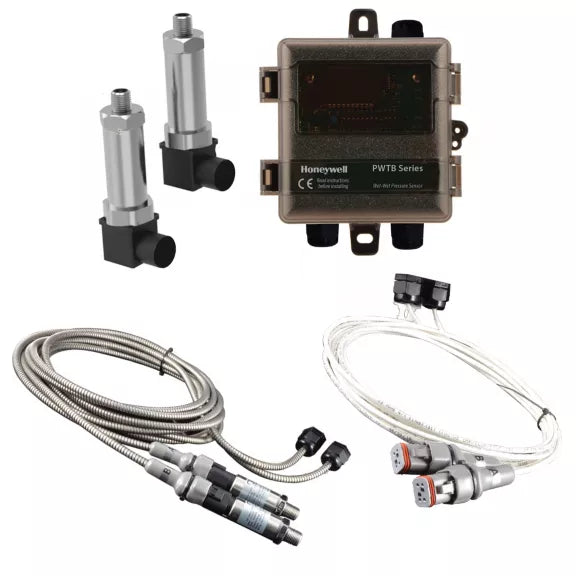

Honeywell PWTB100-AC-9 Wet Pressure Sensor

Product Description

The Honeywell PWTB100-AC-9 wet pressure sensor measures pressure in non-corrosive wet media applications. This device handles pressures up to one hundred PSIG (six hundred eighty-nine kPa) and comes with a nine-foot cable for easy installation. It is ideal for monitoring and controlling pumps, chiller and boiler systems, as well as process control systems. The sensor can also measure pressure differentials across pumps, filters, and heat exchangers.

• Measures pressure in non-corrosive wet media applications.
• Features a nine-foot cable for installation.
• Offers automatic zero adjustment for precise readings.

Product Highlights

This sensor supports selectable analog outputs and includes automatic zero adjustment for improved accuracy.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: PWTB100-AC-9

Technical Specifications

• Range: ±100 psi
• Type: Transmitter
• Output: 4 - 20 mA
• Input Voltage: 24 VAC
• Cable Length: 9 feet
• Maximum Sensor Pressure: 100 PSIG (689 kPa)
• Operating Temperature: -22 to 158 °F (-30 to 70 °C)
• Media Compatibility: Water, other 316 SS compatible media (316L diaphragm)
• Media Temperature: 32 to 250 °F (0 to 125 °C)
• Sensor Type: Micro-machined silicon strain gauge
• Accuracy: ±0.25% BFSL
• Over-range Protection: 200 % rated pressure
• Enclosure Rating: NEMA 4X
• Enclosure Construction: Stainless Steel, 304, 1/4 MNPT, PG9 Conduit Fitting
