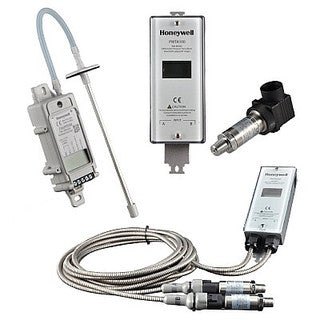

HONEYWELL PWT50/U WET PRESSURE SENSOR,0-5,0-10,0-25,0-50

Product Description

The HONEYWELL PWT50/U is a multi-configurable wet-to-wet differential pressure sensor designed for accurate measurement. This sensor is suitable for applications like pump differential pressure, chiller/boiler pressure drop, and CW/HW system monitoring.

• Operates within a pressure range of 0-5 psi to 0-50 psi
• Field-selectable output options of 4-20 mA, 0-5 Vdc, or 0-10 Vdc
• Durable NEMA 4 enclosure for reliability in various environments

Product Highlights

The PWT50/U offers versatility in pressure measurement with jumper-selectable settings and a robust design that ensures precision.

Product Information

Standard Information

• Manufacturer: HONEYWELL
• Item Type: Sensor

Technical Specifications

• Dimensions: 4 inches high x 5 51/64 inches wide x 2 13/64 inches deep
• Mounting: Vertical Mount
• Operating Humidity Range: 10 to 90% RH, non-condensing
• Voltage: 12 to 30 Vdc or 24 Vac
• Operating Temperature Range: 14 F to 131 F (-10 C to 55 C)
• Output: 4-20 mA, 0-5 Vdc, or 0-10 Vdc selectable
• Connection Size: 1/8 inches NPT female, stainless steel 17-4 PH
• Accuracy: 1% F.S. for 0-10, 0-25, 0-50; 2% F.S. for 0-5 psid
