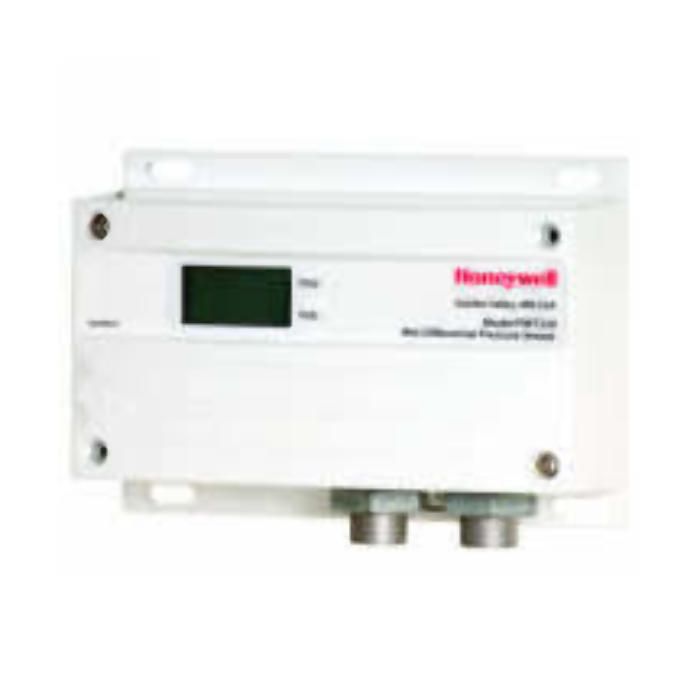

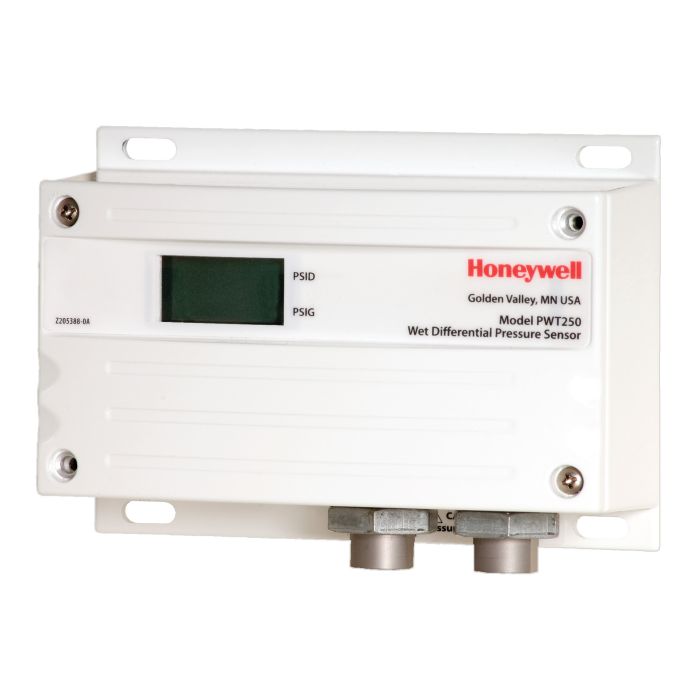

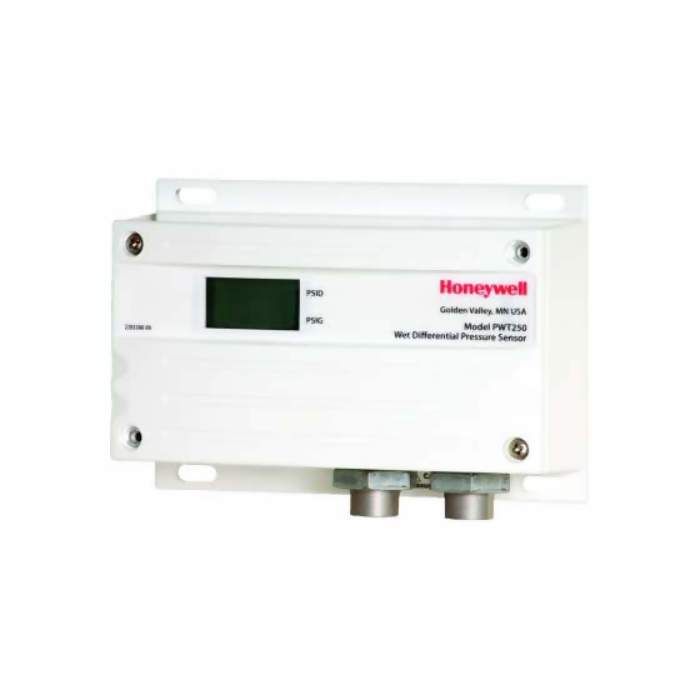

Honeywell PWT250/U Wet Differential Pressure Transmitter 4-20 mA (0-25/0-50/0-125/0-250) Replacement MPN

Product Description

The Honeywell PWT250/U is a wet differential pressure transmitter designed for accurate pressure measurement in various HVAC applications. It features a pressure range selectable from 0 to 25, 0 to 50, 0 to 125, or 0 to 250 psid and outputs of 4-20 mA, 0-5 VDC, or 0-10 VDC. This product is built with a rugged NEMA 4 enclosure for reliability in challenging environments.

• Microprocessor profiled sensors ensure high accuracy.
• Field-selectable output and pressure ranges enhance versatility.
• Compact design allows for easy vertical mounting.

Product Highlights

This transmitter is ideal for applications that require precise control of pressure in commercial building systems, pumps, and chillers.

Product Information

Standard Information

• Brand: Honeywell
• Part #: PWT250/U

Technical Specifications

• Dimensions: Four inches high, five and fifty-four sixty-fourths inches wide, two and thirteen sixty-fourths inches deep
• Voltage: Twelve to thirty VDC or twenty-four VAC
• Operating Temperature Range: Fourteen to one hundred thirty-one degrees Fahrenheit
• Humidity Range: Ten to ninety percent relative humidity, non-condensing
• Pressure Ranges: Zero to twenty-five, zero to fifty, zero to one hundred twenty-five, zero to two hundred fifty psid
• Display: Yes
• Proof Pressure: Two times maximum full-scale range
