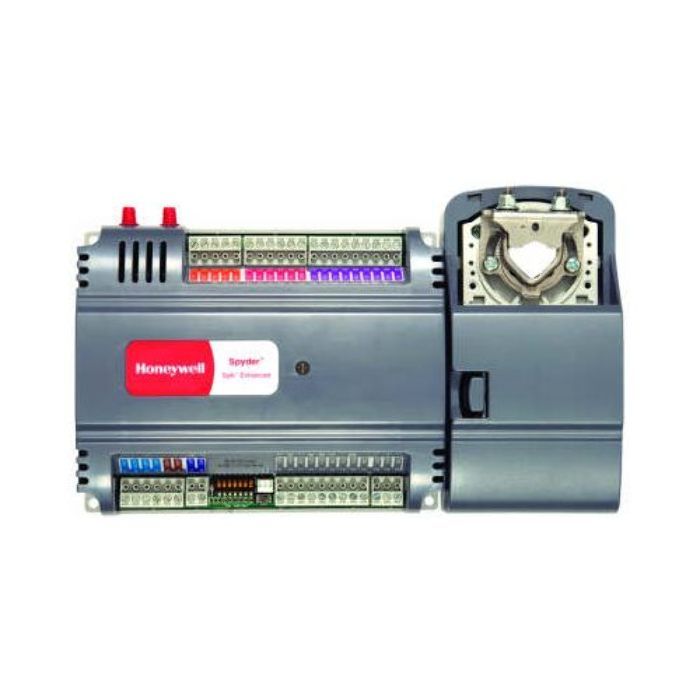

Honeywell PVB6436AS Spyder programmable VAV controller with actuator BACnet communications 24 VAC

Product Description

The Honeywell PVB6436AS is a programmable VAV controller designed for HVAC applications like fan coils and VAV systems. It features 6 Universal Inputs (UI), 4 Digital Inputs (DI), 3 Analog Outputs (AO), and 6 Digital Outputs (DO), totaling 19 I/O points. This stand-alone controller communicates via BACnet MS/TP and RS-485, operating on 24 VAC power within a valid range of 20 to 30 VAC. It is an individually licensed controller, suitable for precise environmental control.

• Built-in Actuator, Real Time Clock, Sylk Bus
• EIA-485 Communications Network Capable of Baud Rates Between 96 and 1152 kbits/s
• Both Controller Housing and Actuator are UL Plenum Rated

Product Highlights

Features a built-in actuator, real-time clock, and Sylk Bus for enhanced functionality and easy sensor integration.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: PVB6436AS

Technical Specifications

• Input Voltage: 24 VAC (20 to 30 VAC)
• Operating Temperature: 32 F to 122 F
• Certifications: UL/cUL (E87741) Listed Under UL916 (Standard for Open Energy Management Equipment), Plenum Rating, FCC Part 15, Subpart B, Class B
• Communication Network: BACnet MS/TP
• I/O Points: 19
• Ports: RS-485
• Controller Family: Spyder
• Controller Type: Programmable, Stand-alone
• Application: Fan Coils, VAV
• Mounting: Damper Shaft Mount
