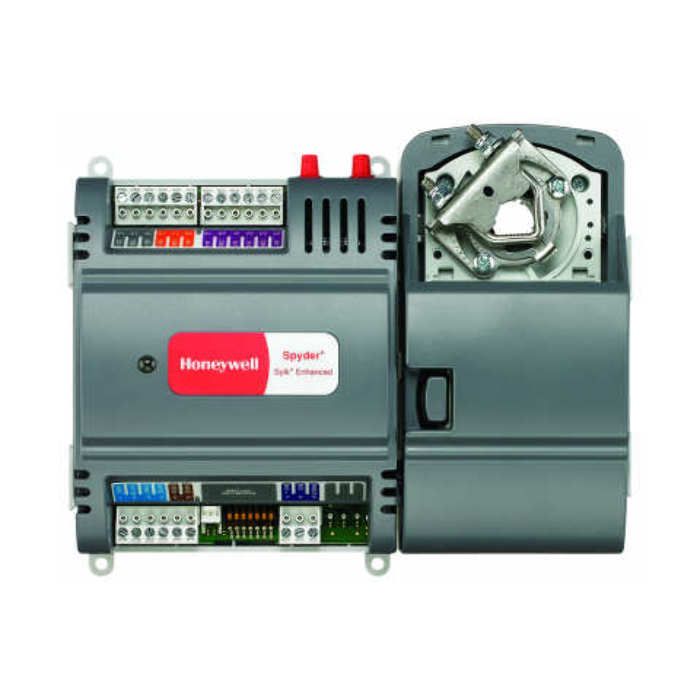

Honeywell PVB4022AS/U Spyder 8 IO VAV Programmable Controller

Product Description

The Honeywell PVB4022AS/U is an advanced programmable controller designed for HVAC applications. It features eight input/output points, allowing for flexible configuration. This controller is ideal for Variable Air Volume (VAV) systems and operates on a BACnet MS/TP communication network.

• Built-in actuator for direct mounting on VAV box damper shaft.
• Real-time clock and scheduling for efficient HVAC control.
• Supports up to 40 controllers on a BACnet MS/TP segment.

Product Highlights

Efficient control for VAV systems with advanced programming options.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: PVB4022AS/U

Technical Specifications

• IO: 8
• Type: Programmable, Stand-alone
• Ports: RS-485
• Power: 24 VAC with a valid range of 20 to 30 VAC
• Approval: UL/cUL Listed Under UL916
• Mounting: Damper shaft mount
• Operating Temperature: 32 F to 122 F
• Communication Network: BACnet MS/TP
• Programming Software: Niagara Tools
