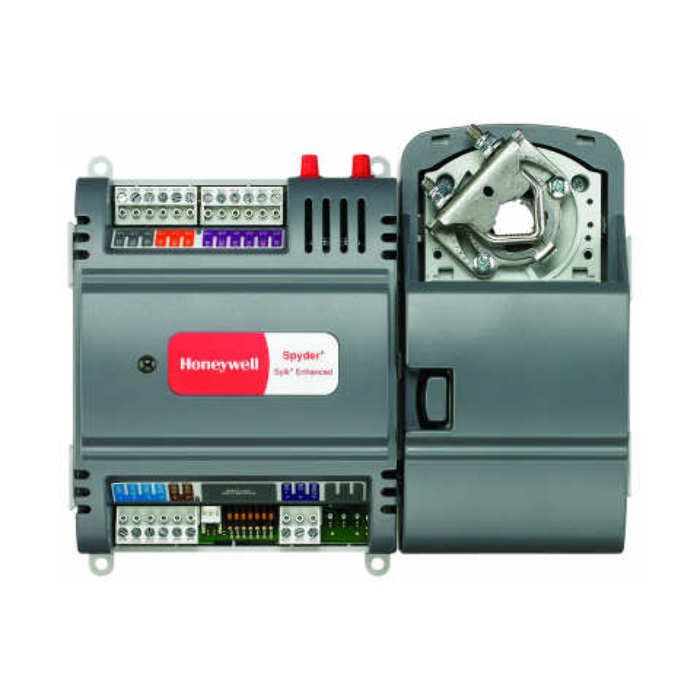

Honeywell PVB4022AS Spyder, 8 IO 24 VAC

Product Description

The HONEYWELL PVB4022AS Spyder is a programmable VAV controller designed for HVAC applications. This stand-alone unit features 8 I/O, specifically 4 UI, 2 AO, and 2 DO, and communicates via BACnet MS/TP over RS-485. Operating on 24 VAC (20 to 30 VAC), it is UL/cUL listed and meets FCC Part 15, Subpart B, Class B requirements. It supports Niagara Tools for programming and is suitable for fan coils and VAV systems, offering damper shaft mounting.

• Built-in Actuator, Real Time Clock, and Sylk Bus for enhanced functionality.
• EIA-485 Communications Network capable of baud rates between 96 and 1152 kbits/s.
• Both controller housing and actuator are UL Plenum Rated for safety and compliance.

Product Highlights

Programmable VAV controller with 8 I/O, BACnet MS/TP communication, and UL plenum rating.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: PVB4022AS

Technical Specifications

• Input Voltage: 24 VAC (20-30 VAC)
• Operating Temperature: 32 F to 122 F
• Certifications: UL/cUL (E87741) UL916, FCC Part 15 Subpart B Class B
• Programming Software: Niagara Tools
• Controller Family: Spyder
• Communication Network: BACnet MS/TP
• I/O: 8
• Ports: RS-485
• Type: Programmable, Stand-alone
• Application: Fan Coils, VAV
• Mounting: Damper Shaft Mount
