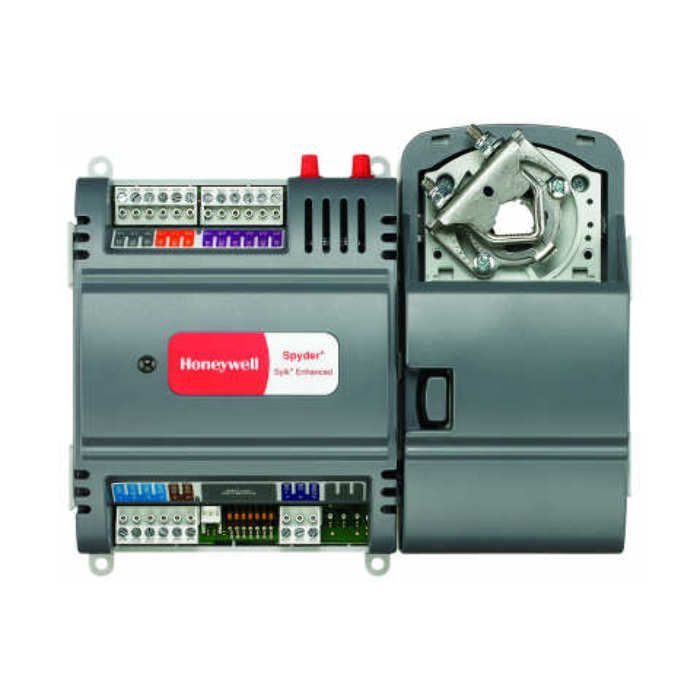

Honeywell PVB4022AS-ILC/U Spyder 8 IO Programmable VAV 24 VAC Replacement MPN

Product Description

The Honeywell PVB4022AS-ILC/U is a programmable controller designed for use in building automation systems. This device serves as an Individually Licensed Controller for Variable Air Volume (VAV) applications. It features a total of eight inputs and outputs, allowing it to effectively manage HVAC systems.

• Built-in actuator for precise control
• UL Plenum rated housing for safe installation
• Real-time clock for accurate scheduling

Product Highlights

This controller is ideal for applications that require efficient temperature and air flow management.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: PVB4022AS-ILC/U

Technical Specifications

• Input/Output: 8
• Type: Programmable, Stand-alone
• Communication Network: BACnet MS/TP
• Power Voltage: 24 VAC with a valid range of 20 to 30 VAC
• Operating Temperature: 32 F to 122 F
• Mounting: Damper Shaft Mount
• Approval: UL/cUL Listed, Under UL916
• Application: Fan Coils, VAV
