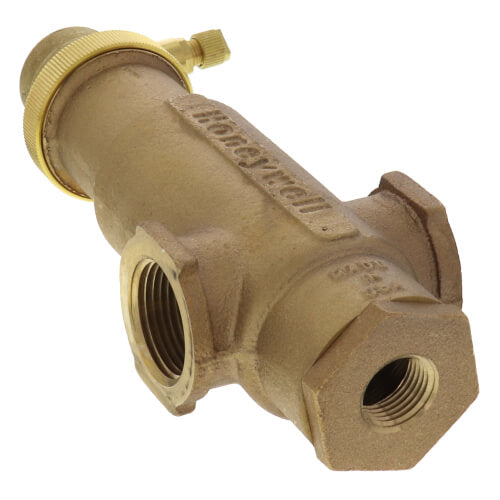

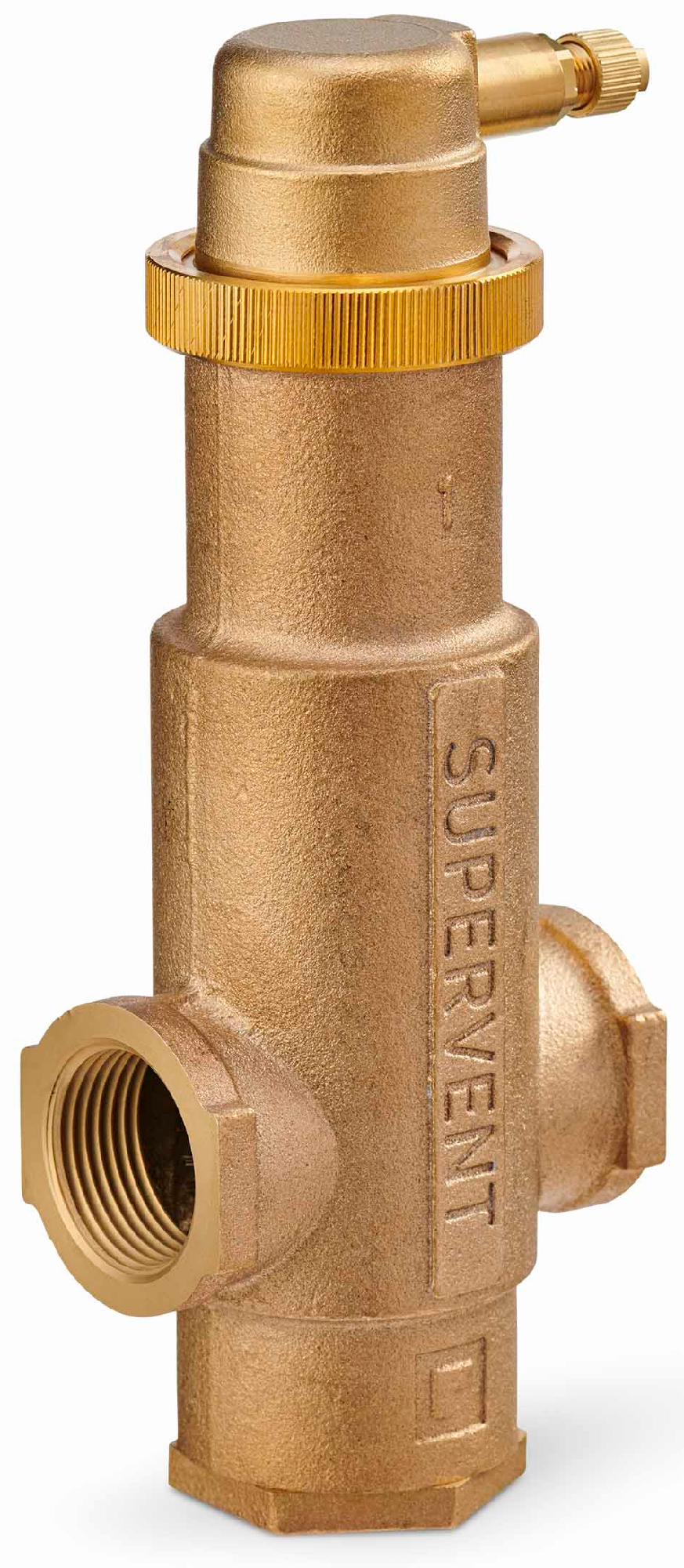

Honeywell PV100 Powervent Gold Air Eliminator, 1 In Npt

Product Description

The Honeywell PV100 Powervent Gold Air Eliminator with 1 In Npt removes trapped air, micro bubbles, and dirt. It guarantees fast startups and helps prevent corrosion. This air eliminator is fully serviceable with low pressure drop and high CV bi-directional flow, designed for industrial applications.

• Air eliminator
• 1 In Npt
• No clog vent

Product Highlights

The Honeywell PV100 air eliminator ensures efficient system operation by purging air and controlling dirt and debris, minimizing air vent fouling.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: PV100
• Country of Origin: United States

Technical Specifications

• Included Components: Unit^Instruction Guide
• Batteries required: No
• Assembly required: No
• Item Model Number: PV100
• Country of Origin (subject to change): United States
• Brand: Honeywell
• Item Weight: 1.2 Kilograms
• Model / MPN: PV100
• Number of Items: 1.0
• Part ID / MPN: PV100
• Size: 1" NPT
• Type: Super Vent Air Eliminator
• Pressure Setting: 125 PSI
• Inlet Size: 1" FPT
• Outlet Size: 1" FPT
• Description: 1 in. NPT SuperVent with 22 Cv capacity
• Application: Heating
• Connection Type: FNPT x FNPT
• Connection Size: 1 in. bottom inlet
• Pipe Size: 1 in.
• Maximum Safe Operating Pressure (psi): 125 psi
• Maximum Operating Temperature (F): 240 F
• Dimensions: 6-1/2" H x 3-3/32" W
• Maximum Diameter: 2- 3/32 in.
• Materials: Bronze
• Max Pressure (PSI): 125
• Connection Method: Threaded
• Max Temp (F): 240 F
• Material: Bronze
• Capacity: 22 Cv
• Diameter: 2-3/32" Max
• Operating Temperature: 240 F (116 C) Max
• Power Source: Corded Electric
• Compatible Brand: For Honeywell
• Media Temperature: 0 F (-18 C) Min
