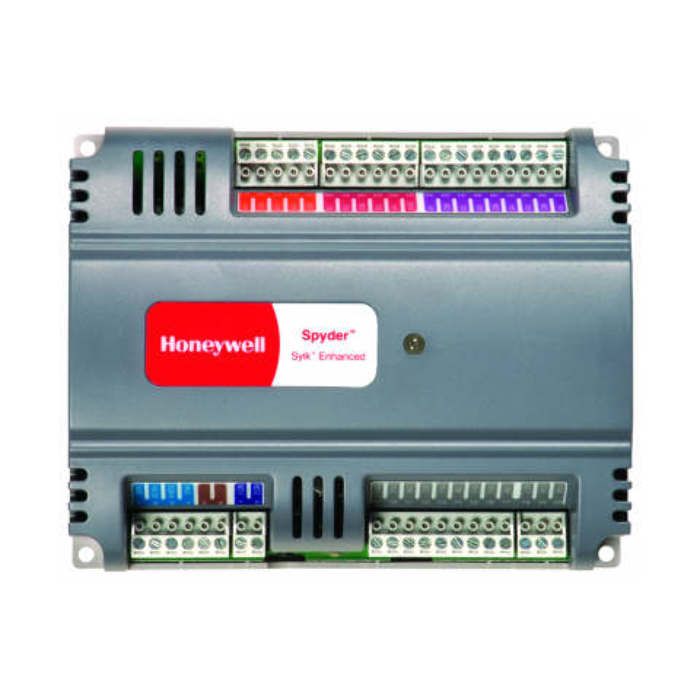

Honeywell PUB6438SR-ILC/U Spyder, 21 IO 23 VAC

Product Description

The Honeywell PUB6438SR-ILC/U is a programmable controller designed for HVAC applications. This unit features six universal inputs, four digital inputs, three analog outputs, and eight digital outputs. The controller operates on BACnet MS/TP protocol and is compatible with RS-485 communications. It is suitable for a range of applications including fan coils and heat pumps.

• Supports a robust communication network for efficient device interaction.
• Real-time clock and advanced scheduling capabilities.
• UL Plenum rated for safety and reliability.

Product Highlights

This controller is ideal for controlling and monitoring HVAC systems. It allows for easy integration with compatible sensors and devices, streamlining automation processes.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: PUB6438SR-ILC/U

Technical Specifications

• Input/Output Configuration: 21 IO
• Power Supply: 23 VAC, range of 20 to 30 VAC
• Mounting Type: DIN Rail Mount
• Communication Network: BACnet MS/TP
• Operating Temperature: -40 F to 150 F
• Approval: UL/cUL Listed Under UL916
• Application: Suitable for fan coils, heat pumps, and unit heaters.
