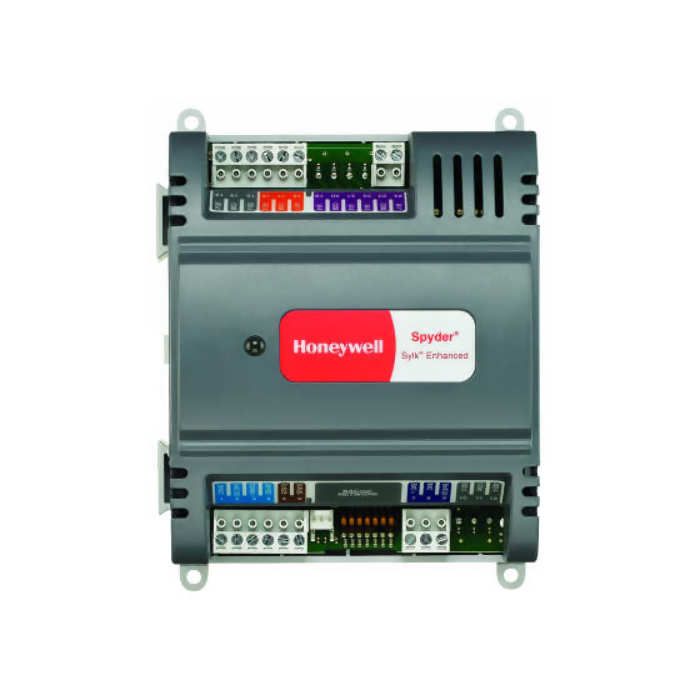

Honeywell PUB1012S-ILC/U Spyder, 4 IO

Product Description

The Honeywell PUB1012S-ILC/U is a unitary programmable controller designed for HVAC applications. This model features four input/output points, operates on a BACnet MS/TP communication protocol, and includes a real-time clock. It is suitable for use in various systems such as fan coils, heat pumps, and unit heaters.

• Programmable with a function block engine for diverse HVAC applications
• Compliant with UL Plenum standards for safe installation
• Supports up to 40 controllers per BACnet segment

Product Highlights

The PUB1012S-ILC/U combines functionality with ease of use, allowing for simple installations and modifications. This controller is equipped with a Sylk bus for communication with Sylk-enabled sensors.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: PUB1012S-ILC/U

Technical Specifications

• Input/Output Points: 4
• Type: Programmable, Stand-alone
• Communication Network: BACnet MS/TP
• Power: 15 VAC with a range of 20 to 30 VAC
• Operating Temperature: -40 F to 150 F
• Mounting: DIN Rail Mount
• Approval: UL/cUL Listed (E87741)
