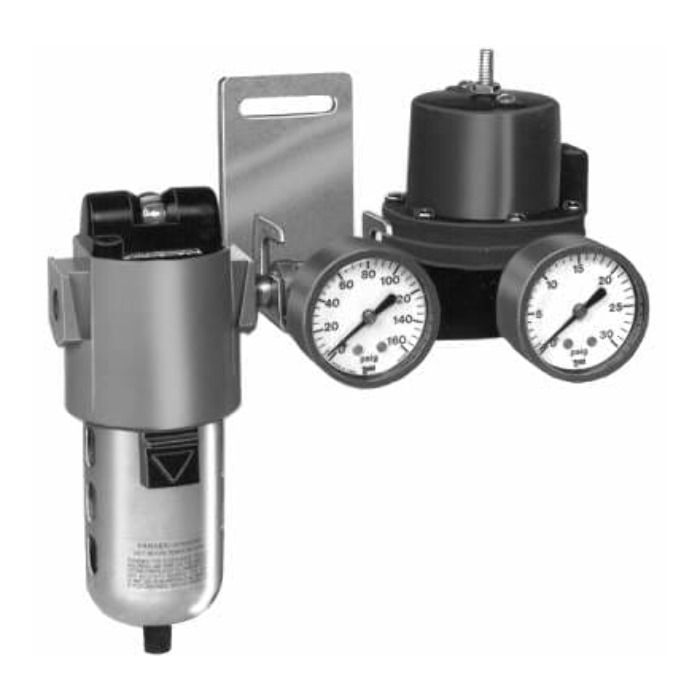

Honeywell PP902D1007/U Pneumatic Pressure Reducing Valve

Product Description

The Honeywell PP902D1007/U is a pneumatic pressure reducing valve designed for dual pressure systems. This model supports 1/4 inch NPT connections and operates between 45 to 150 psi. It is suitable for applications requiring controlled pressure settings.

• Built-in adjustable safety relief valve
• Pressure gauges included for monitoring
• Pneumatically controlled for easy adjustments

Product Highlights

This valve is ideal for HVAC control systems, offering precision and safety for pneumatic applications.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: PP902D1007/U

Technical Specifications

• Dimensions: 11 inches high, 8 7/8 inches wide, 3 3/4 inches deep
• Connection Size: 1/4 inch NPT (female)
• Pressure Ratings: Inlet 45 to 150 psi; Adjustable primary pressure 0 to 25 psi; Secondary pressure adjustable 0 to 5 psi
• Includes: Sub-micron filter assembly and two psi gauges
• Mounting: Bracket included
