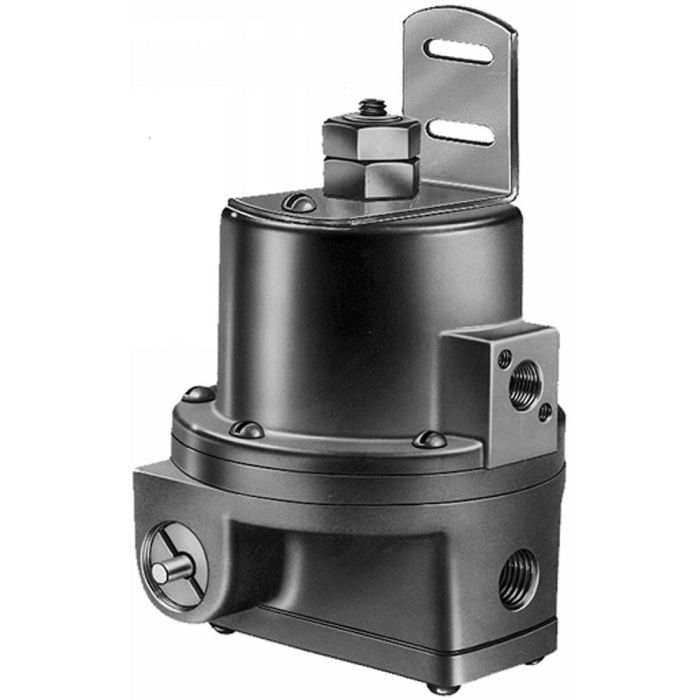

Honeywell PP901A1004/U Pneumatic Pressure Reducing Valve 2 Way 1/4 in. NPT 45 To 150 psi

Product Description

The Honeywell PP901A1004/U is a pneumatic pressure reducing valve designed to control the pressure in pneumatic systems. It features a two-way operation and connects with a quarter-inch NPT fitting. The adjustable pressure range is from forty-five to one hundred fifty psi.

• Includes a separate safety relief valve to adjust to the desired operating pressure.
• Gauge tapping is provided for pressure measurement.
• Suitable for single pressure systems or two-pressure systems.

Product Highlights

This valve effectively controls air pressure, ensuring proper operation of pneumatic devices. Its design allows for easy installation and maintenance.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: PP901A1004/U

Technical Specifications

• Dimensions: 11 inches high, 8.875 inches wide, 3.75 inches deep
• Inlet Connection: 1/4 inch NPT (female)
• Pressure Range: 45 to 150 psi (310 to 1034 kPa)
• Output Pressure: Adjustable from 0 to 25 psi
• Gauge Tapping: Included for regulated pressure measurement
• Mounting: Bracket included
• Approvals: Underwriters Laboratories Inc., CSA, Factory Mutual
