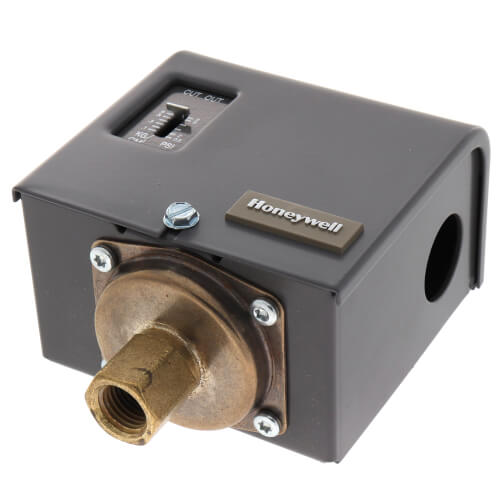

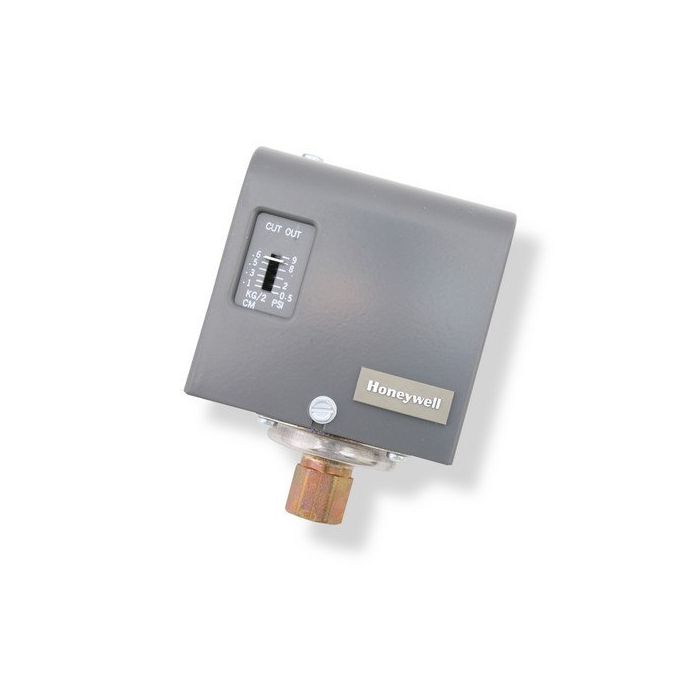

Honeywell PA404B1023/U Pressuretrol Controller

Product Description

The Honeywell PA404B1023/U Pressuretrol Controller operates in various control circuits including twenty-four, one hundred twenty, two hundred forty, or two hundred seventy-seven volts. This device is suitable for both self-powered applications and offers significant versatility with an adjustable operating range. Its robust stainless steel diaphragm sensor enhances durability and reliability in demanding environments.

• SPST snap-acting switch
• Stainless steel diaphragm sensor
• 1/4 inch female pipe threads connection

Product Highlights

This controller is ideal for use with suspension type unit heaters and features a straightforward switching action that engages at the set point plus differential on pressure rise and disconnects at the set point on pressure fall.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer Part Number: PA404B1023/U

Technical Specifications

• UPC / GTIN: 085267064316
• Operating Range (psi): 0.5 psi to 9.0 psi Adjustable
• Dimensions: 4 15/32 inches high x 3 3/8 inches wide x 2 1/4 inches deep
• Maximum Safe Operating Pressure (psi): 20 psi
• Pressure Surge (max. psi): 50 psi
• Application: Used with suspension type unit heaters
• Electrical Ratings: 0.25 A @ 0.25 to 12 Vdc; 120 Vac, Resistive: 8.3A; 240 Vac, Resistive: 8.3A; 277 Vac, Resistive: 7.2A
• Switch Type: SPST snap-acting switch
