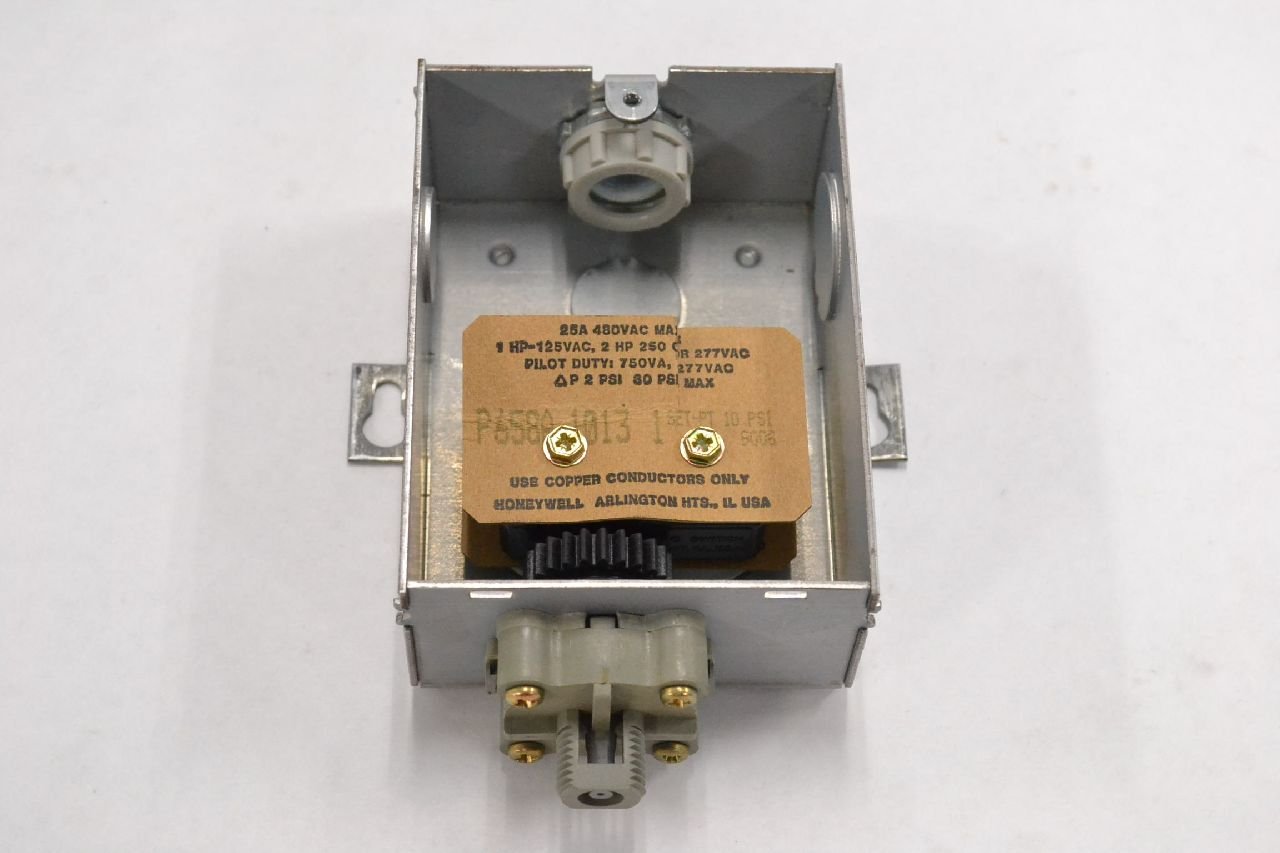

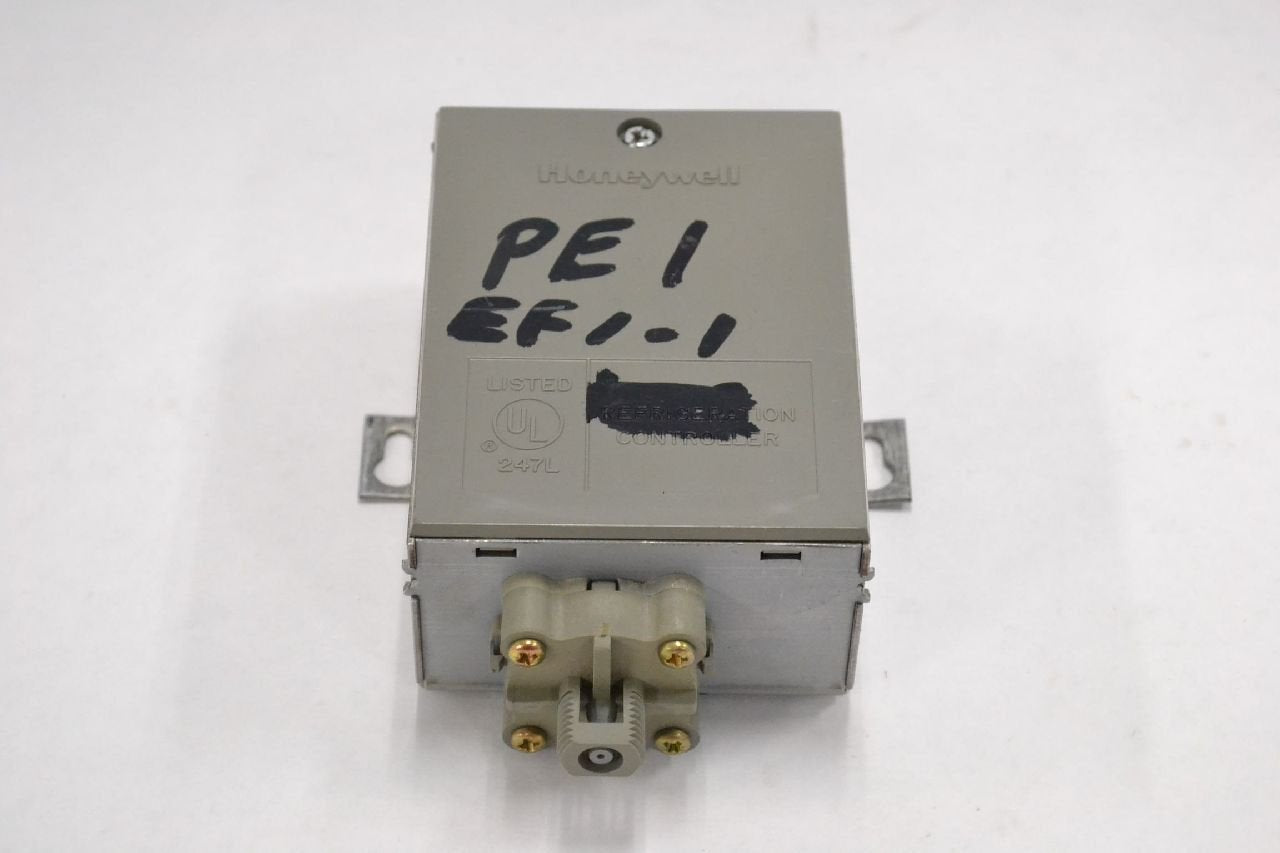

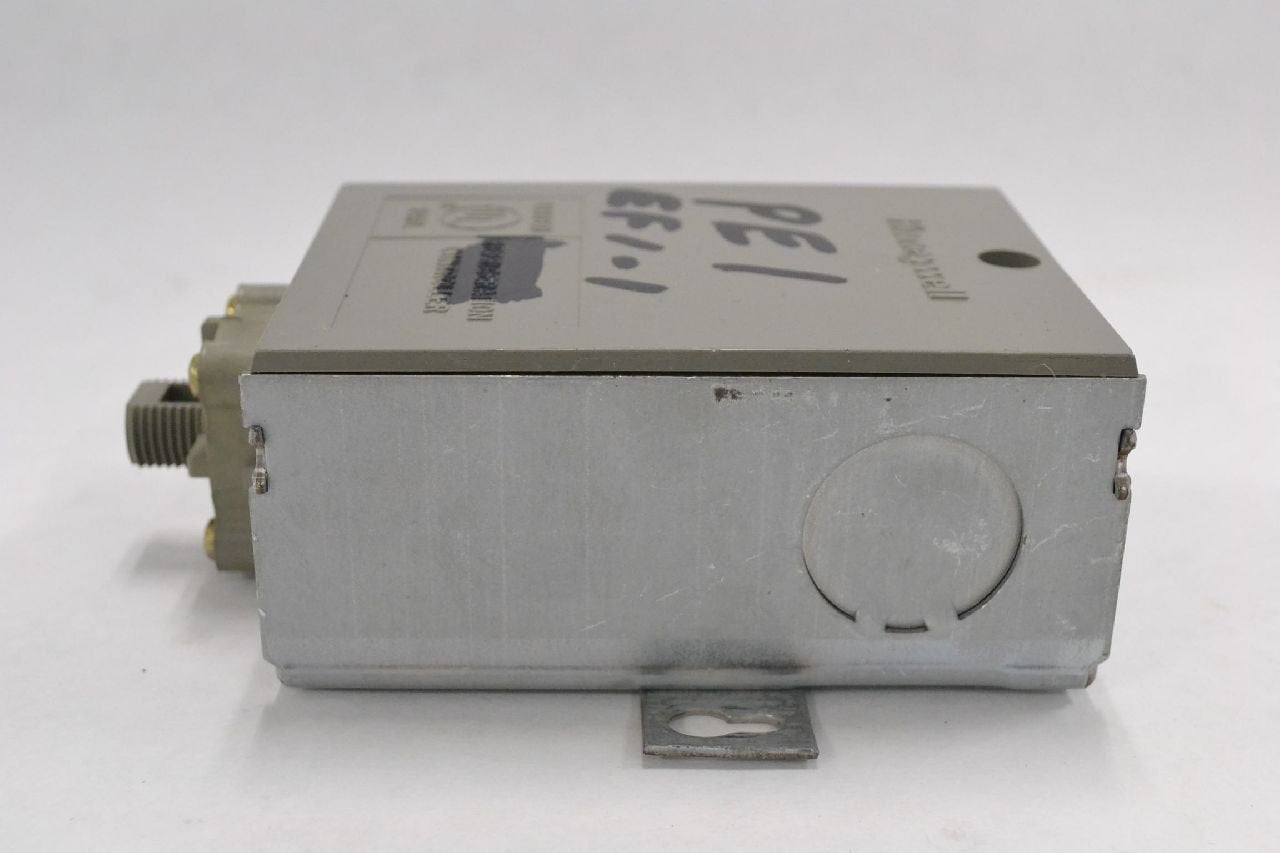

Honeywell P658A1013 Pneumatic Electric Switch 10 psi

Product Description

The Honeywell P658A1013 is a surface mounted pneumatic electric switch designed for switching pneumatic signals to electrical outputs. It features a factory-calibrated setting of ten psi and an adjustable range from two to twenty-four psi. This switch is suitable for controlling equipment such as fans and pumps, making it essential in HVAC applications.

• Factory calibrated setpoint at ten psi.
• Designed for surface mounting with compact dimensions.
• Converts pneumatic signals to electrical switching actions using SPDT configuration.

Product Highlights

The Honeywell P658A1013 switch provides reliable control in HVAC systems, offering a range of features that enhance its functionality and ease of use.

Product Information

Standard Information

• Brand: Honeywell
• Model: P658A1013

Technical Specifications

• Type: Pneumatic Electric Switch
• Maximum Safe Operating Pressure: 30 psi
• Differential Pressure Range: 2 psi

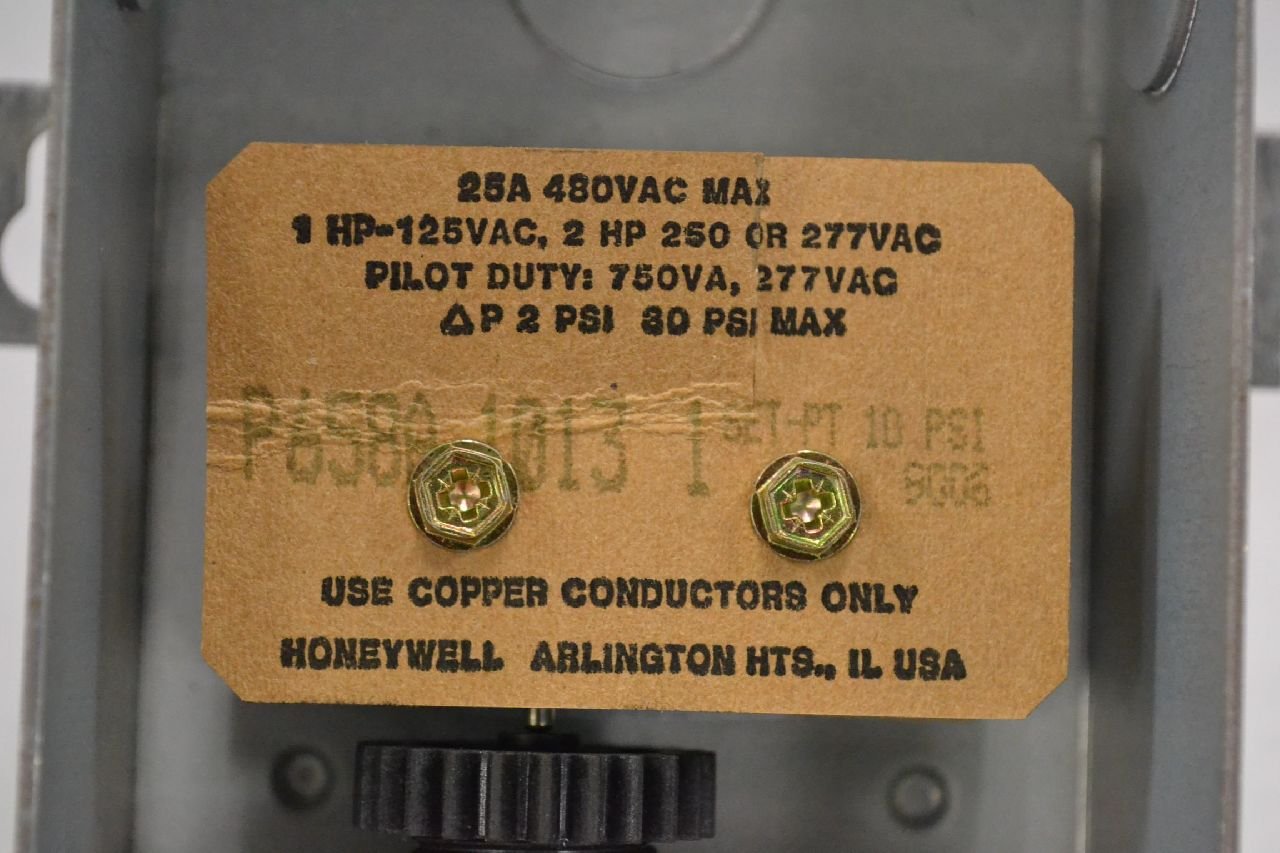

• Motor Load: 1 hp at 125 Vac, 2 hp at 250 or 277 Vac
• Electrical Connections: Screw terminals
• Humidity Range: 5 to 95% RH
• Operating Temperature Range: 40 F to 140 F
• Dimensions: Five and three-eighths inches high, three and three-eighths inches wide, and two inches deep
