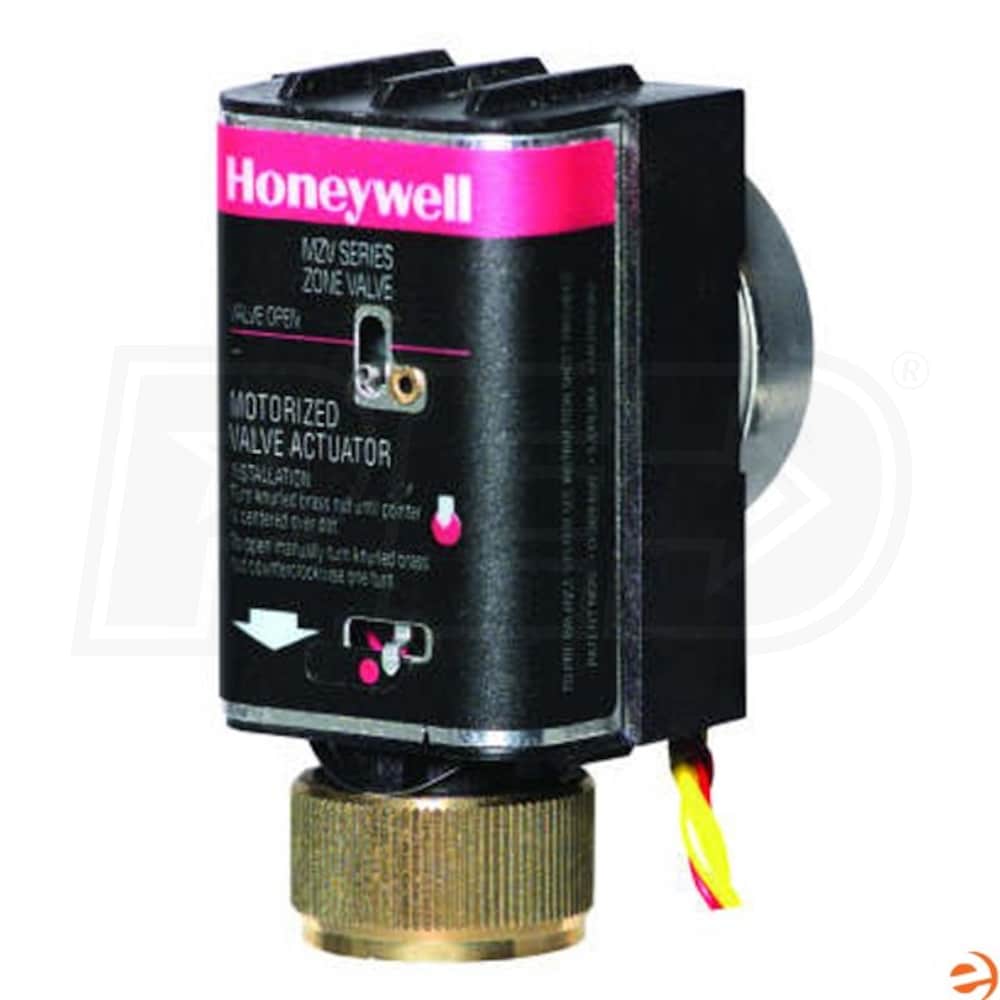

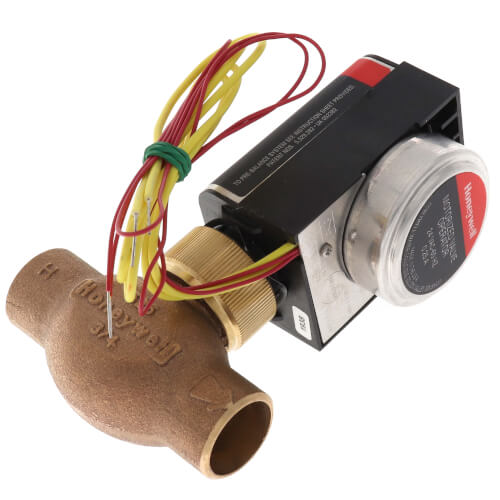

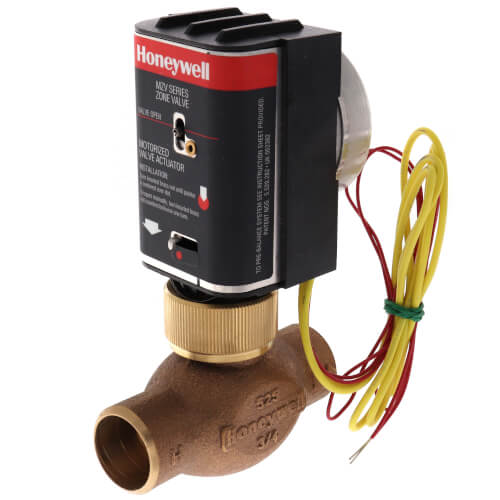

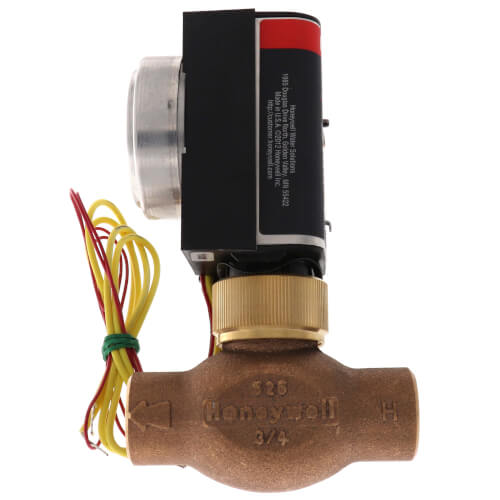

Honeywell MZV525E-T/U Motorized Zone Valve

Product Description

The Honeywell MZV525E-T/U is a motorized zone valve suitable for zoning in both residential and commercial systems. It works with hot water heating, chilled water air conditioning, fan coil units, and indirect water heaters. This two-way valve offers a built-in balancing plug for efficient operation. It integrates an SPST auxiliary switch and employs a reliable rack and pinion design.

• Bronze body with sweat connection type
• Includes an end switch and 18 wiring leads
• Normally closed valve with a flow capacity of 5.8

Product Highlights

This valve is ideal for effective zone control in HVAC systems.

Product Information

Standard Information

• Application: Residential or Commercial Zoning
• Body Pattern: Two-way

Technical Specifications

• Maximum Close-off Pressure: 20 Psi
• Maximum Water Pressure: 125 Psi
• Operating Humidity Range: 5 to 95% relative humidity, non-condensing
• Input Voltage: 24 Vac
• Frequency: 60 Hz
• Size: 3/4 inches
• Connection Type: Sweat
• Flow Capacity (Cv): 5.8
• Auxiliary Switch: SPST
• End Switch: Yes
• Position: Normally Closed
• Current: 0.25 Amps
• Time Cycle: 10-20 Seconds Open, 3-6 Seconds Close
• Wiring: 18 Leads
• Body Material: Bronze
• Maximum Ambient Temperature: 125°F
• Maximum Temperature: 240°F
• Width: 3.3 inches
• Depth: 2.3 inches
• Height: 5.6 inches
• Weight: 1.8 Pounds
