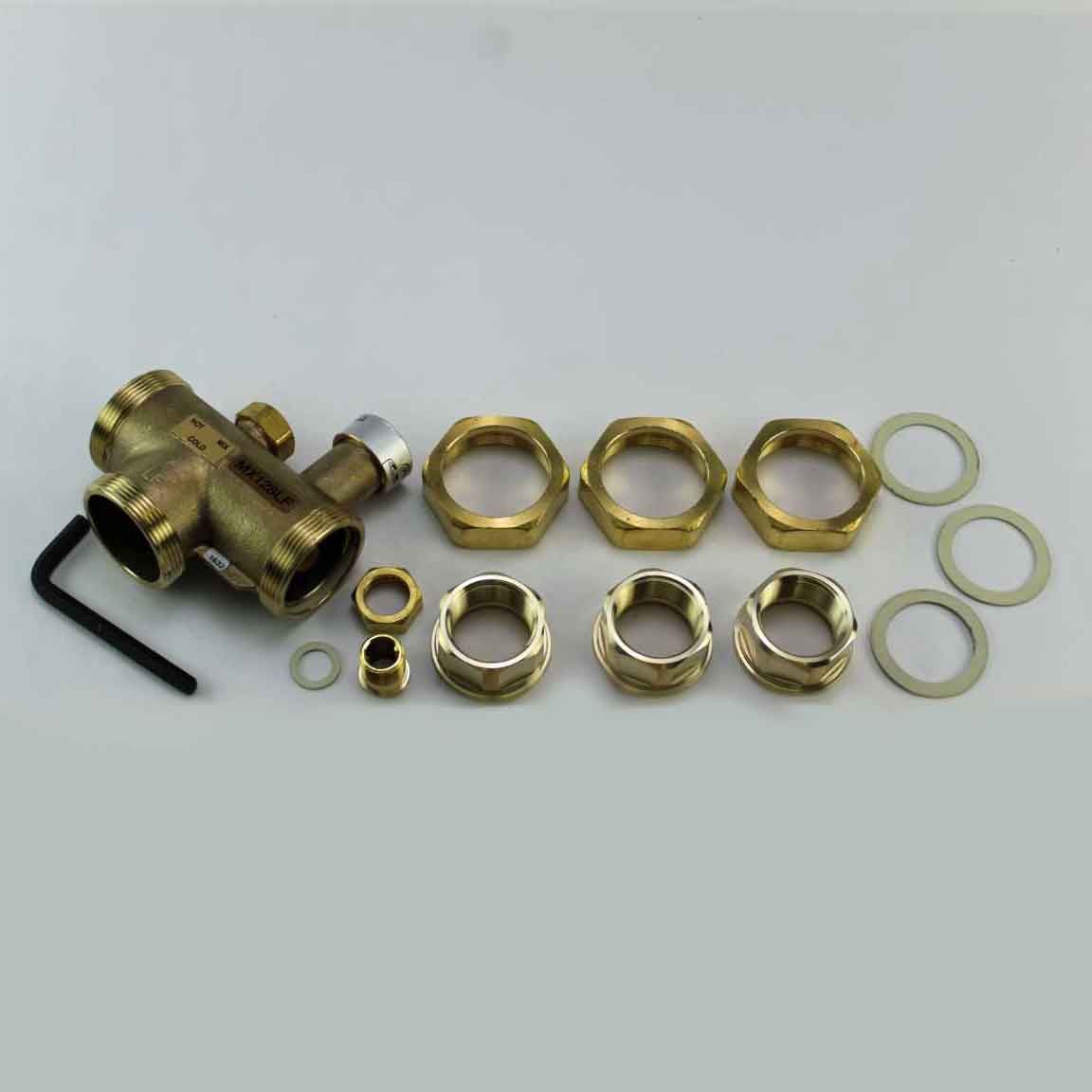

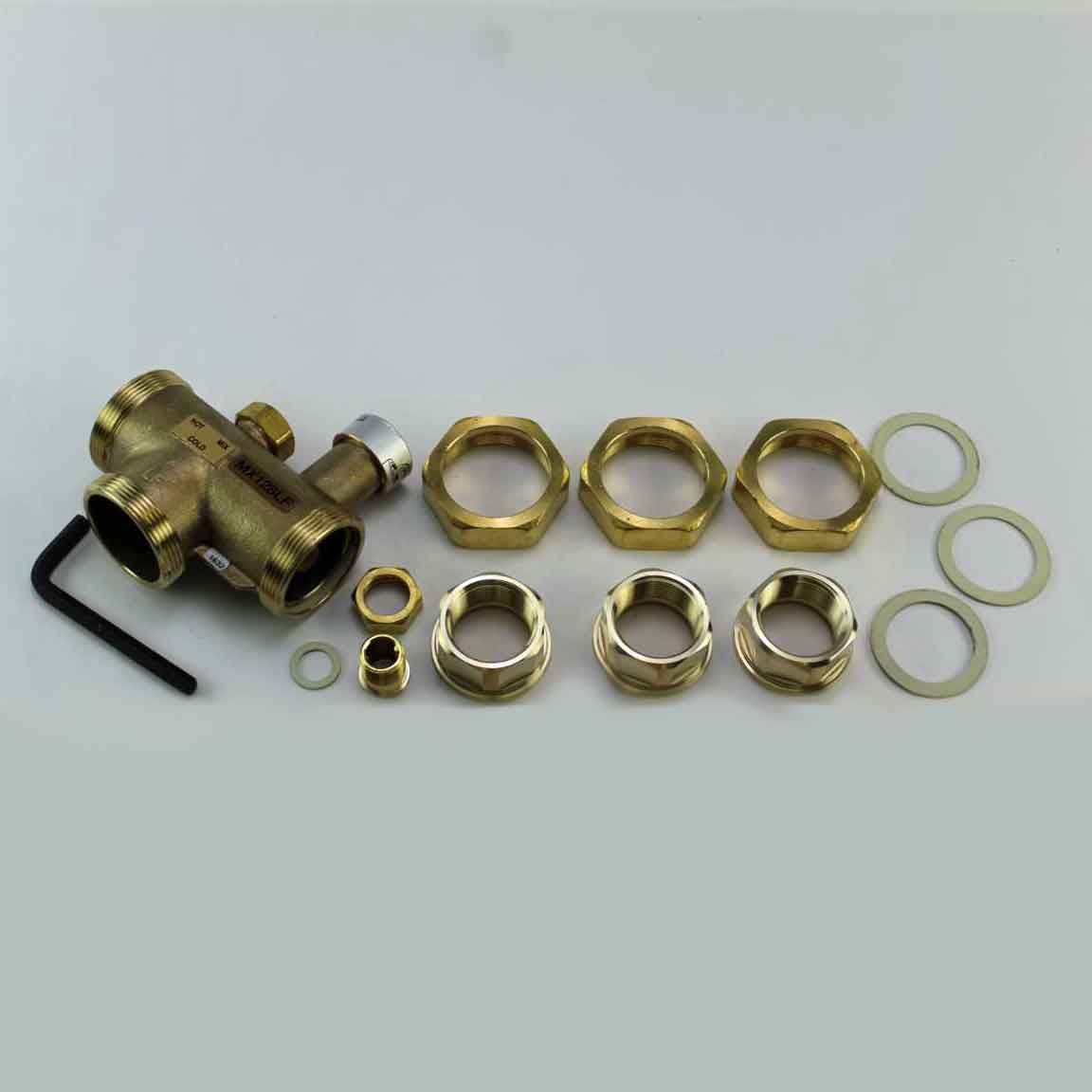

Honeywell MX128LF 1-1/4 x 1-1/4 FPT Thermostatic Mixing Valve

Product Description

The Honeywell MX128LF is a 1-1/4 x 1-1/4 FPT thermostatic mixing valve designed for tempered domestic potable water applications. Featuring a large flow proportional design, this valve ensures fast response times with its recirculation connection. If the cold water supply is interrupted, the valve reduces flow in seconds. It can be installed in any position.

• Proportional thermostatic mixing valve
• Recirculation connection for fast response
• Flow reduction in seconds if cold water supply is interrupted

Product Highlights

This mixing valve is suitable for domestic potable water systems. The brass body ensures durability, and the valve is designed for easy installation in any orientation. It is certified for point-of-source use and meets ASSE 1017 standards.

Product Information

Standard Information

• Brand: Honeywell
• MPN: MX128LF

Technical Specifications

• Valve Application: Tempered Domestic Potable Water
• Body Material: Brass
• Valve Connection: FPT
• Inlet Connection Size: 1-1/4 inches
• Outlet Connection Size: 1-1/4 inches
• Minimum Flow GPM: 2.5 GPM
• Minimum Outlet Temperature: 113°F
• Maximum Outlet Temperature: 149°F
• Max Pressure: 150 psi
• Point-of-Use Certified: No
• Point-of-Source Certified: Yes
• ASSE Classification: 1017
• Weight: 7.40 lbs
