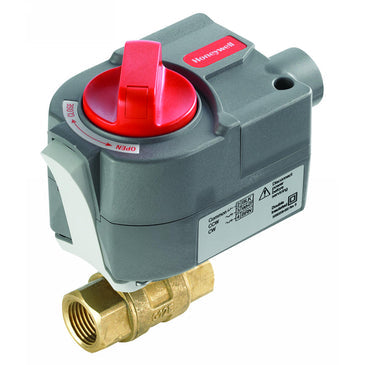

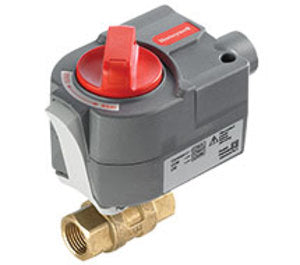

Honeywell MVN713L0000+C1 Control Valve Actuator

Product Description

The Honeywell MVN713L0000+C1 is a control valve actuator designed for VBN2 and VBN3 control ball valves. It regulates hot and chilled water with glycol solutions in HVAC systems.

• Compatible with control ball valves from one-half to one and one-quarter inches.
• Offers floating and modulating control functions.
• Features click-on installation, allowing easy setup without tools.

Product Highlights

The MVN713L0000+C1 actuator is used in various heating and cooling systems. It simplifies installation and enhances operational reliability.

Product Information

Standard Information

• Brand: Honeywell
• Actuator Type: Valve

Technical Specifications

• Manufacturer Part Number: MVN713L0000+C1
• Torque: 27 lb-in (3 Nm)
• Fail-Safe: Non-Spring Return
• Supply Voltage: 24 VAC +20%, -15%, 24 VDC
• Control Signal: Analog
• Rotational Stroke: Ninety degrees plus or minus three degrees
• Power Consumption: 5 VA for modulating, 1.5 VA for floating, 6 VA for fast acting SPDT
• Enclosure Rating: NEMA 3R, IP40
• Environmental Rating: NEMA2
• Mounting Type: Click-on installation
• Noise Rating: 35 dB(A) maximum at one meter
• Operating Humidity: 5 to 95% RH, non-condensing
• Operating Temperature: -4 to 131 degrees Fahrenheit (-20 to 55 degrees Celsius)
• Weight: 1.4 lb (0.64 Kg)
