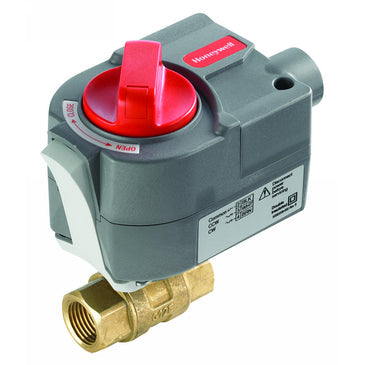

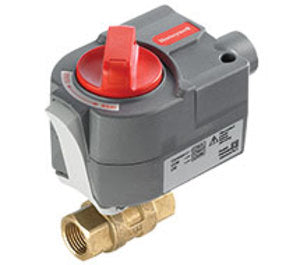

Honeywell MVN613L0000+C1 Control Valve Actuator

Product Description

The Honeywell MVN Series MVN613L0000+C1 actuator is designed to work with VBN2 two-way and VBN3 three-way control ball valves. This actuator is suitable for controlling hot and chilled water, and it can handle up to 50% glycol solutions in HVAC applications. The actuator offers two-position or modulating functions with a floating control signal and features a non-spring return for reliable operation.

• Designed for use with VBN2 and VBN3 ball valves.
• Includes click-on installation for easy setup.
• Provides reliable two-position and modulating control.

Product Highlights

This actuator ensures efficient control of liquids in heating and cooling systems. Its user-friendly installation and functional design make it suitable for various HVAC systems.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: MVN613L0000+C1

Technical Specifications

• Actuator Type: Valve
• Torque: 27 lb-in (3 Nm)
• Fail Safe Mode: Non-spring return, fail in place
• Input Voltage: 24 VAC plus 20%, minus 15%, 24 VDC
• Power Consumption: 5 VA for modulating; 1.5 VA for floating; 6 VA for fast acting SPDT
• Frequency: 50 Hz; 60 Hz
• Rotational Stroke: 90 degrees plus/minus 3 degrees
• Mounting: Click-on installation, no tool required
• Noise Rating at 1m: Maximum 35 dB(A)
• Electrical Connections: Field wiring 18 to 20 AWG to screw terminals
• Cable Specification: 18 AWG, plenum rated, 300 V, 10 A, 3 ft length
• Operating Temperature: -4 to 131 degrees Fahrenheit
• Operating Humidity: 5 to 95% RH, non-condensing
• Enclosure Rating: NEMA 3R, IP40
• Dimensions: Standard base units 2-13/16 inches W x 3-7/8 inches H x 4-9/16 inches D
• Weight: 1.4 lb (0.64 kg)
• Design Life at Rated Voltage: 60,000 cycles
• Environmental Rating: NEMA2
• Approvals: UL/cUL; UL60730
• External Auxiliary Switches Available: No
