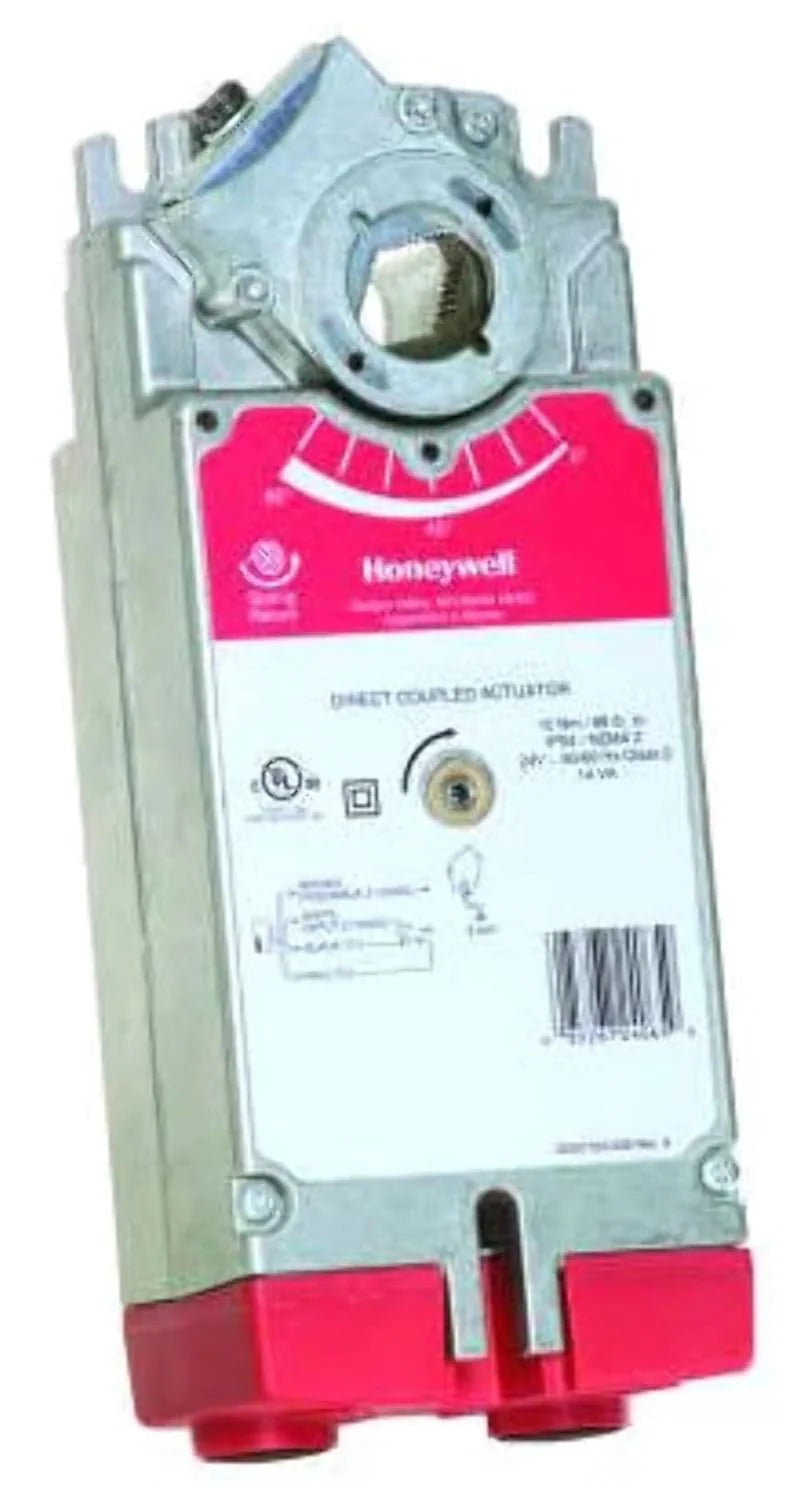

Honeywell MS8120A1007/U Direct-Coupled Two-Position Spring Return Actuator 175 lb Torque 24Vac

Product Description

The Honeywell MS8120A1007/U Direct-Coupled Two-Position Spring Return Actuator is designed for HVAC applications. This actuator delivers 175 lb-in (20 Nm) of torque, making it suitable for air dampers, air handlers, ventilation flaps, louvers, and ball valves. Operable in a temperature range from -40 to 140 degrees Fahrenheit and powered by 24Vac, this unit supports several voltage controls, including SPST, SPDT, and proportional current or voltage controls.

• Heavy-duty torque rating at 175 lb-in
• Wide temperature operating range from -40 to 140 degrees Fahrenheit
• Compatible with various control types

Product Highlights

The Honeywell MS8120A1007/U actuator is ideal for trade professionals. It features an access cover for easy connectivity, built-in mechanical end limits, and a field-selectable spring return direction. The actuator is UL listed, CE compliant, and plenum rated per UL873.

Product Information

Standard Information

• Brand: Honeywell
• MPN: MS8120A1007/U

Technical Specifications

• Torque: 175 lb-in (20 Nm)
• Temperature Range: -40 to 140 degrees Fahrenheit
• Voltage: 24Vac
• Control Types: SPST, SPDT, proportional current or voltage
• Compliances: UL listed, CE compliant, plenum rated per UL873
• Country of Origin: United States
