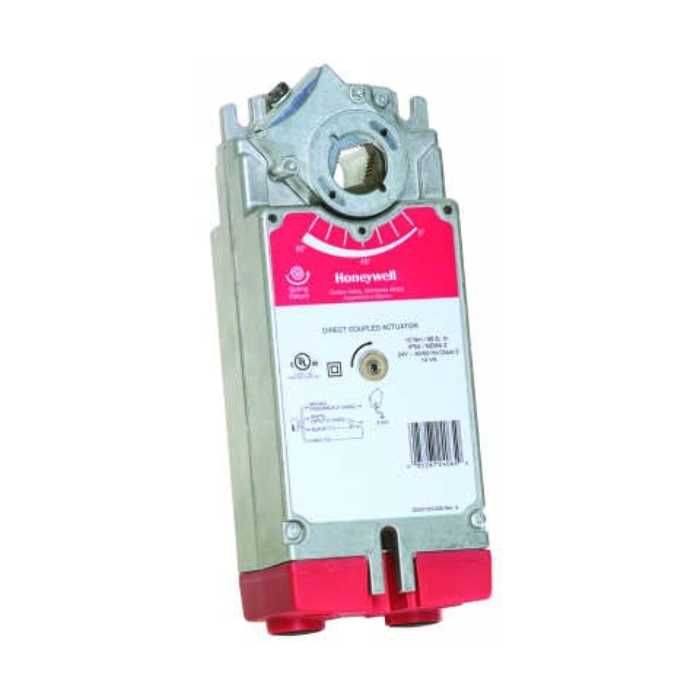

Honeywell MS8110A1206/U Direct Coupled Actuator, 88 lb-in

Product Description

The Honeywell MS8110A1206/U is a direct coupled actuator designed for HVAC systems. This actuator has a torque rating of eighty-eight lb-in. It operates on 24 VAC and features a self-centering shaft adapter along with mechanical end limits.

• Spring return design
• Two position with SPST switch
• Field-selectable spring return direction

Product Highlights

This actuator is built for reliability in HVAC applications, facilitating efficient control over dampers in various settings.

Product Information

Standard Information

• Brand: Honeywell
• MPN: MS8110A1206/U

Technical Specifications

• Power Consumption: 24 VAC
• Auxiliary Switches: Two SPDT
• Operating Temperature: -40 F to 150 F (-40 C to 65 C)
• Electrical Connections: Field wiring 14-22 AWG to screw terminals, located under the removable access cover
• Style: Dampers and Damper Actuators
• Category: Commercial Building Controls
• Manufacturer: Honeywell
