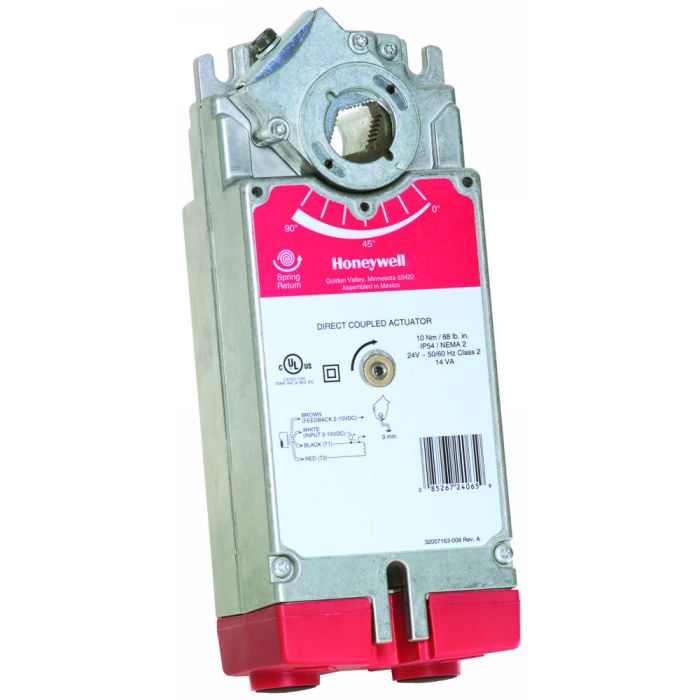

Honeywell MS8110A1008/U Direct Coupled Actuator 88 lb-in

Product Description

The Honeywell MS8110A1008/U is a direct coupled actuator designed for HVAC systems, featuring a torque rating of eighty-eight pound-inches. This actuator operates on 24 volts AC and offers a spring return functionality. It is suitable for many HVAC applications where precise control of dampers is necessary.

• Self-centering shaft adapter for varied shaft sizes
• Field-selectable spring return direction
• UL listed and plenum-rated models

Product Highlights

The actuator includes an access cover that facilitates easy connectivity and a manual winding capability with a locking function.

Product Information

Standard Information

• Brand: Honeywell
• MPN: MS8110A1008/U

Technical Specifications

• Power Consumption: 24 VAC
• Operating Temperature: -40 F to 150 F (-40 C to 65 C)
• Auxiliary Switches: Two SPDT
• Electrical Connections: Field wiring 14-22 AWG to screw terminals under the removable access cover
• Dimensions: Standard actuator size for HVAC applications
• Torque Rating: 88 lb-in
• Style: Dampers and damper actuators
• Manufacturer: Honeywell
