Product Description

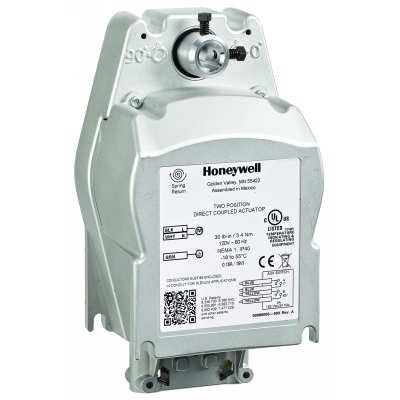

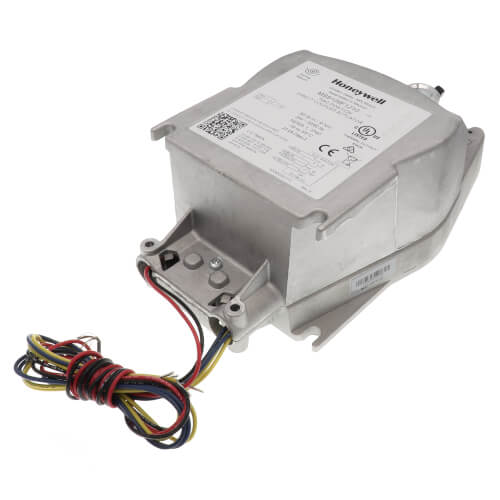

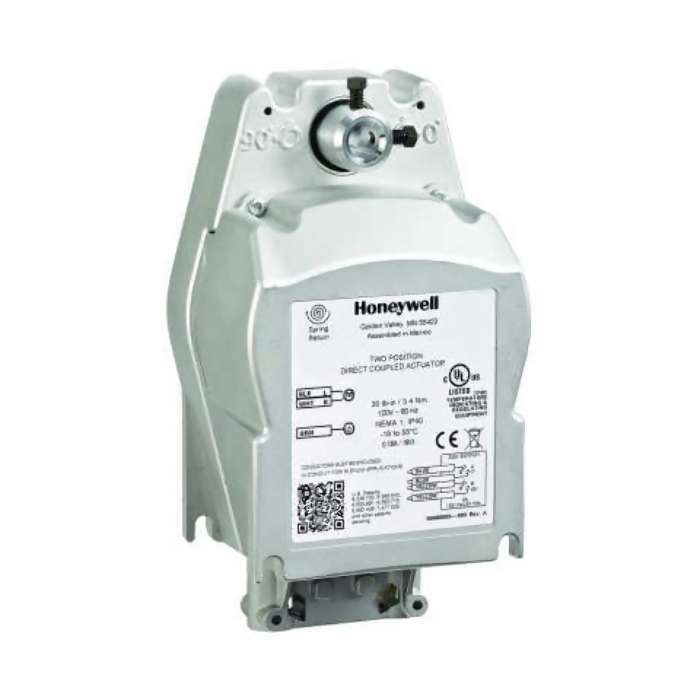

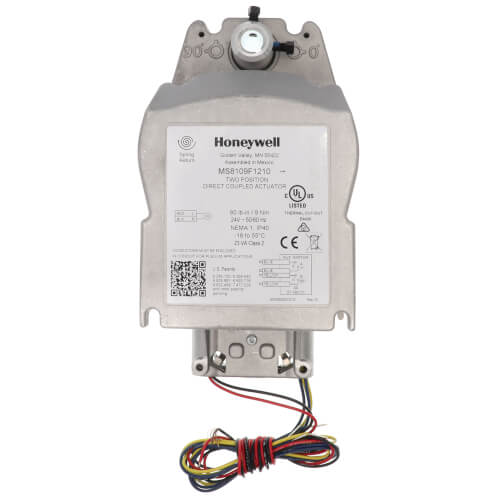

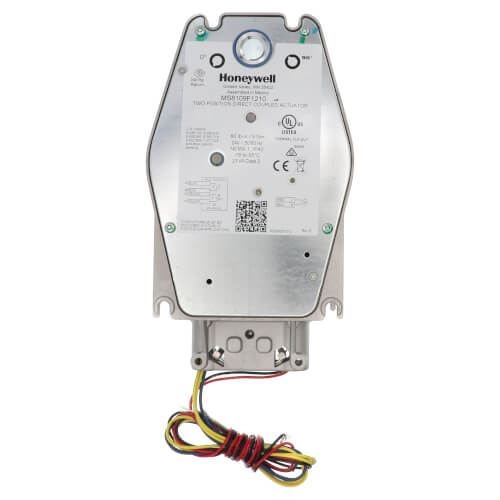

The HONEYWELL MS8109F1210/U is a direct coupled spring return actuator. It operates on 24 VAC with a 23 VA rating and features a two-position SPST control. Designed for fire and smoke dampers, it meets UL-555 and UL-555S safety requirements. Reversible mounting allows for clockwise or counterclockwise spring rotation.
- Reversible mounting facilitates use in either clockwise (CW) or counterclockwise (CCW) spring rotation
- Housing design allows flush mounting to damper
- Designed To Operate Reliably In Smoke Control System Requiring Underwriters Laboratories Inc. UL555S Ratings Up To 350 F
Product Highlights
This fast-acting, two-position actuator has an integral spring return that ensures a consistent level of torque.
Product Information
Standard Information
-
Brand: HONEYWELL
-
Manufacturer Part Number: MS8109F1210/U
Technical Specifications
-
Housing: Aluminum
-
Auxiliary Switch: F120X: 2 SPST, 5A res., 3A ind. @ 250VAC;
F10XX: None
-
Power Consumption: 23 VA
-
Operating Conditions: 0 F To 130 F (-18 C To 55 C)
-
Electrical Connection: Color-Coded Leads
-
Category: Commercial Building Controls
-
Manufacturer: HONEYWELL
-
Product: Dampers and Damper Actuators
-
Style: Dampers and Damper Actuators
-
Product Type: Actuator
-
Actuator Type: Two Position
-
Voltage: 24V
-
Application: Fire and Smoke
-
Torque: 80 lb-in
-
Fail Safe Mode: Spring Return
-
Temperature Range: 0
to 130
F
-
Features: NEMA-1 Enclosure Internal Aux Switch
-
Spring Return: CCW
-
Rotation: CW
-
Manufacturer Part Number: MS8109F1210/U
-
Product Series: MS8109 Fire and Smoke
-
Family Series: Honeywell Dampers, MS8109 Fire and Smoke Series
-
Control Signal: Two Position (On/Off)
-
Nominal Timing: 15 s
-
Nominal Voltage: 24 VAC
-
Rotational Stroke (Deg): 95
-
Feedback: None
-
Mounting: Direct Coupled
-
Shaft Size: Round 1/2 "
-
Shaft Rotation: By Orientation
-
NEMA Rating: NEMA 1
-
Internal Aux Switches: 2
-
Protection Rating: IP40
-
Operating Temperature: 0-130
F
-
Approvals: C-Tick, CE, cUL, UL
-
Comments: Two Integral 3/8 in Flexible Conduit Connections
-
Runtime: 15 Secs
-
Supply Va: 23 VA
-
Supply Voltage (Nominal): 24 VAC
-
Motor: DC with brushes
-
Wiring: MS4xxx 32" leads, 18 AWG and 7/8" knockout holes
for conduit fittings; MS8xxx 39" leads, 18 AWG and 7/8" knockout holes for
conduit fittings
-
Action: CW/CCW mounting method
-
Noise: Driving Open: 80 dBA @ 3' (1.0 m); Holding: 20 dBA @
3' (1.0 m) no audible noise
-
Life Expectancy: 30,000 cycles
-
Operating Humidity: 5 to 95% RH, non-condensing
