Product Description
inchn

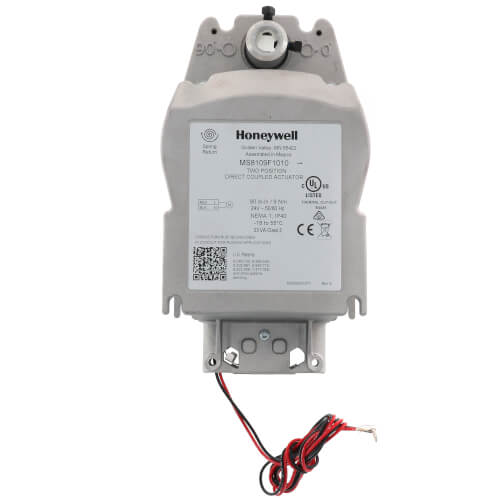

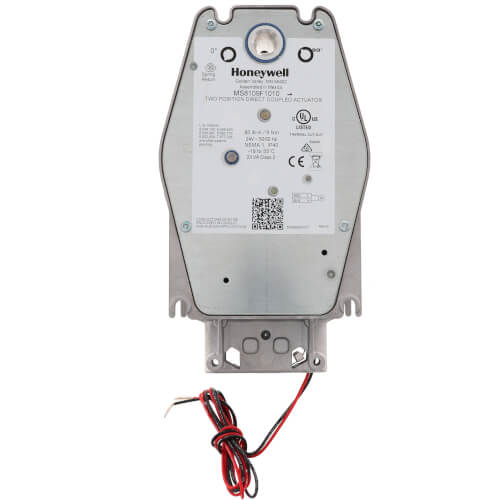

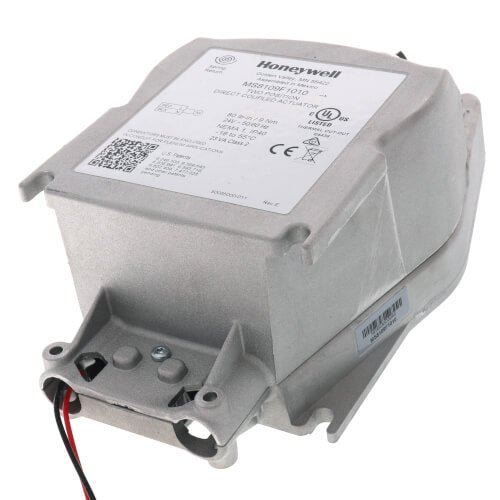

The Honeywell MS8109F1010 Fire Smoke Actuator delivers precise control in fire and smoke management systems. This actuator outputs 80 lb-in and operates on 24V, ensuring efficient operation in critical environments. It is designed for dampers and other equipment with on-off operation.
inchn
inchn- 80 lb-in torque
inchn- 24V operating voltage
inchn- Two-position spring return
inchn
inchn
Product Highlights
inchn
The Honeywell MS8109F1010 is essential for controlling HVAC dampers in smoke and fire systems, providing reliability, precise control, and durability.
inchn
Product Information
inchn
Standard Information
inchn
inchn-
Brand: Honeywell
inchn-
Model: MS8109F1010
inchn
inchn
Technical Specifications
inchn
inchn-
Torque: 80 in-lb
inchn-
Voltage: 24V AC
inchn-
Signal Type: On/Off
inchn-
Shaft Type: 1/2 in Round
inchn-
Stroke Degree: 95 +/-3
inchn-
Switch Type: 5 SPDT
inchn-
Ambient Temp. Range: 0 Degrees to 130 Degrees F
inchn-
Power Consumption: 23VA Driving, 7VA Holding
inchn-
Dimensions: Height: 8 15/16 in, Width: 5 1/8 in, Depth: 3 1/4 in
