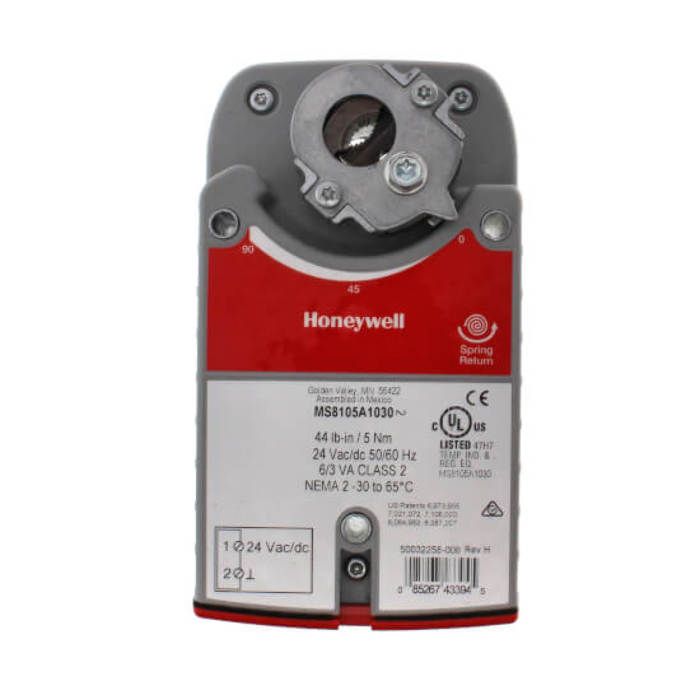

Honeywell MS8105A1030/U Direct Coupled Actuator 44 lb-in

Product Description

The Honeywell MS8105A1030/U is a direct coupled actuator designed for HVAC applications. This actuator features a spring return mechanism and operates efficiently on 24 VAC. With a torque rating of 44 lb-in, it is ideal for controlling volume dampers and rotary valves.

• Spring Return, 24 VAC
• Two Position Control
• Suitable for Dampers and Valves

Product Highlights

The actuator can be directly mounted to the drive shaft or used with accessory hardware for remote mounting. It is compatible with quarter-turn rotary valves like ball or butterfly valves, making it versatile for various HVAC setups.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: MS8105A1030/U

Technical Specifications

• Power Consumption: 24 VAC
• Torque Rating: 44 lb-in (5 Nm)
• Auxiliary Switches: One SPDT
• Operating Temperature: -40 F to 150 F (-40 C to 65 C)
• Electrical Connections: Field wiring 18 AWG to 14 AWG conductors and up to 2-14 AWG conductors to screw terminals
• Style: Dampers and Damper Actuators
• Category: Commercial Building Controls
