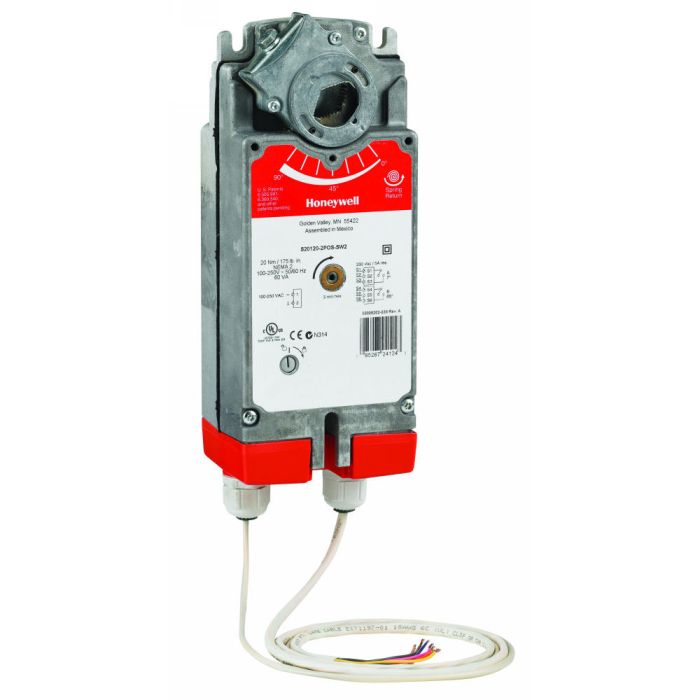

Honeywell MS7520W2007/U Direct Coupled Actuator 175 lb-in

Product Description

The Honeywell MS7520W2007/U is a direct coupled actuator designed for HVAC applications. This actuator provides a torque rating of 175 lb-in, making it suitable for a variety of damper control tasks in commercial settings.

• Spring return mechanism
• Voltage input of twenty-four VAC
• Compatible with floating and modulating control signals

Product Highlights

This actuator supports 2-10 VDC and 4-20 mA control options, enabling versatile integration into existing systems.

Product Information

Standard Information

• Brand: Honeywell
• MPN: MS7520W2007/U

Technical Specifications

• Power Consumption: 24 VAC
• Torque Rating: 175 lb-in
• Auxiliary Switches: Two SPDT
• Operating Temperature: -40 F to 150 F
• Electrical Connections: Field wiring 14-22 AWG to screw terminals, located under the removable access cover
• Stroke Length: 3 feet
• Shipping Weight: 10 lbs
