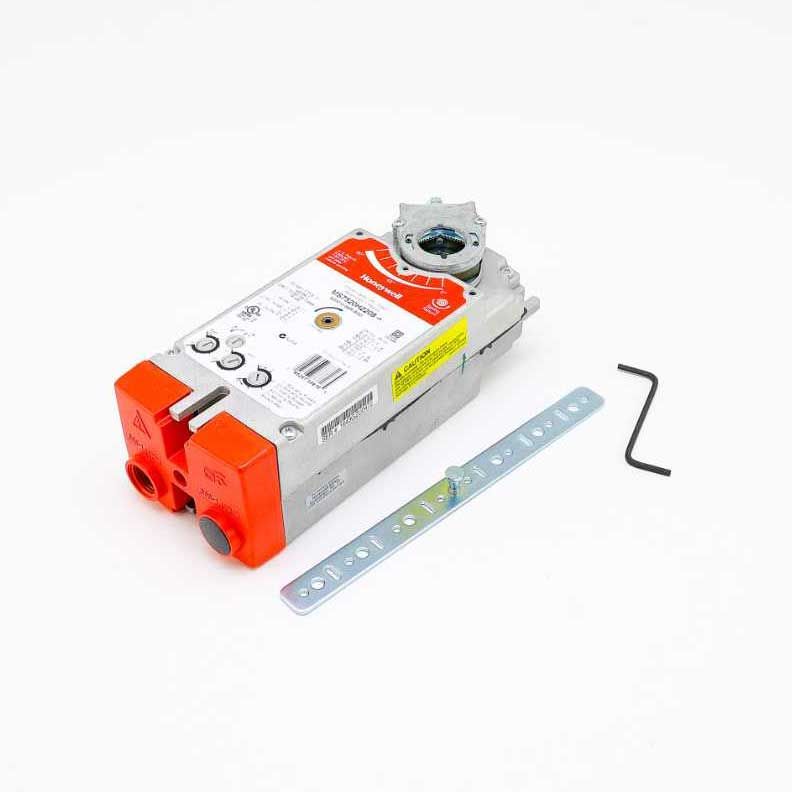

Honeywell MS7520H2208 24V Spring Return Direct Coupled Actuator 2-10VDC

Product Description

The Honeywell MS7520H2208 is a high-performance 24V spring return direct coupled actuator, designed for precise control in industrial automation applications.

• Brand: Honeywell
• MPN: MS7520H2208
• 24V Spring Return Direct Coupled Actuator, 2-10V

Product Highlights

Ideal for HVAC systems, the MS7520H2208 actuator features a 2-10V DC floating input signal and a torque rating of 175 lb-in for reliable and powerful actuation.

Product Information

Standard Information

• Brand: Honeywell
• Model: S20

Technical Specifications

• MPN: MS7520H2208
• Weight: 7.80 lbs
• Dimensions: 9.72 in high x 3.94 in wide x 2.95 in deep
• Torque: 175 lb-in
• Voltage: 24V AC
• Timing: 20 sec Spring Return, 90 sec Nominal @ 60 Hz
• Control Signal: Floating, On/Off
• Shaft Type: Self-Centering Clamping
• Stroke: 95 ±3 degrees
• Operating Temp Range: -40°F to 140°F
• Includes: 2 Internal Auxiliary Switches, 3mm Crank, Mounting Bracket, Self-Centering Shaft Adapter
