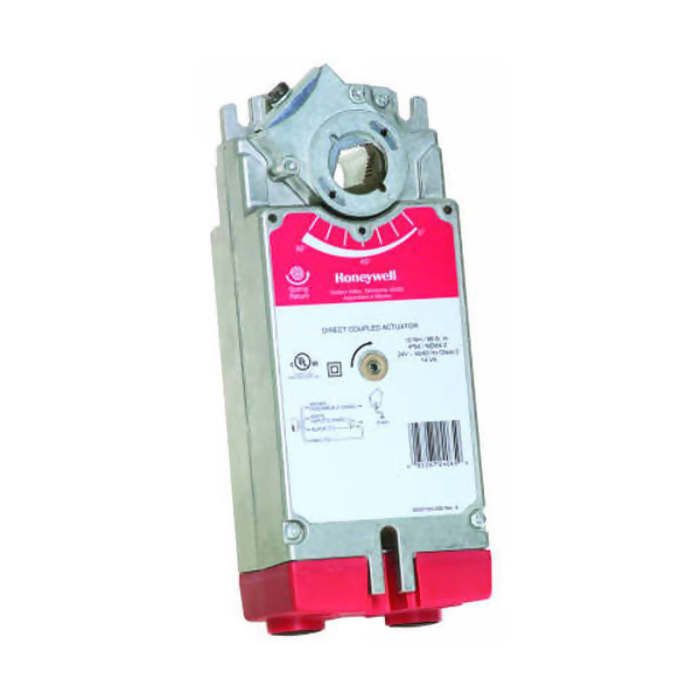

Honeywell MS7510A2206/U Direct Coupled Actuator 88 lb-in

Product Description

The Honeywell MS7510A2206/U is a direct coupled actuator designed for HVAC applications. It provides 88 lb-in of torque with spring return functionality. This actuator operates on 24 VAC power and functions using modulating or floating control signals. It is ideal for controlling dampers in commercial building systems.

• Torque rating of 88 lb-in
• Spring return feature for automatic positioning
• Versatile control options: 2-10 VDC and 4-20 mA

Product Highlights

The Honeywell actuator features a self-centering shaft adapter for easy installation on various shaft sizes. It includes a metal housing for durability and built-in mechanical limits for reliable performance.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: MS7510A2206/U

Technical Specifications

• Power Consumption: 24 VAC
• Operating Temperature: -40 F to 150 F (-40 C to 65 C)
• Electrical Connections: Field wiring with 14-22 AWG to screw terminals
• Auxiliary Switches: Two SPDT
