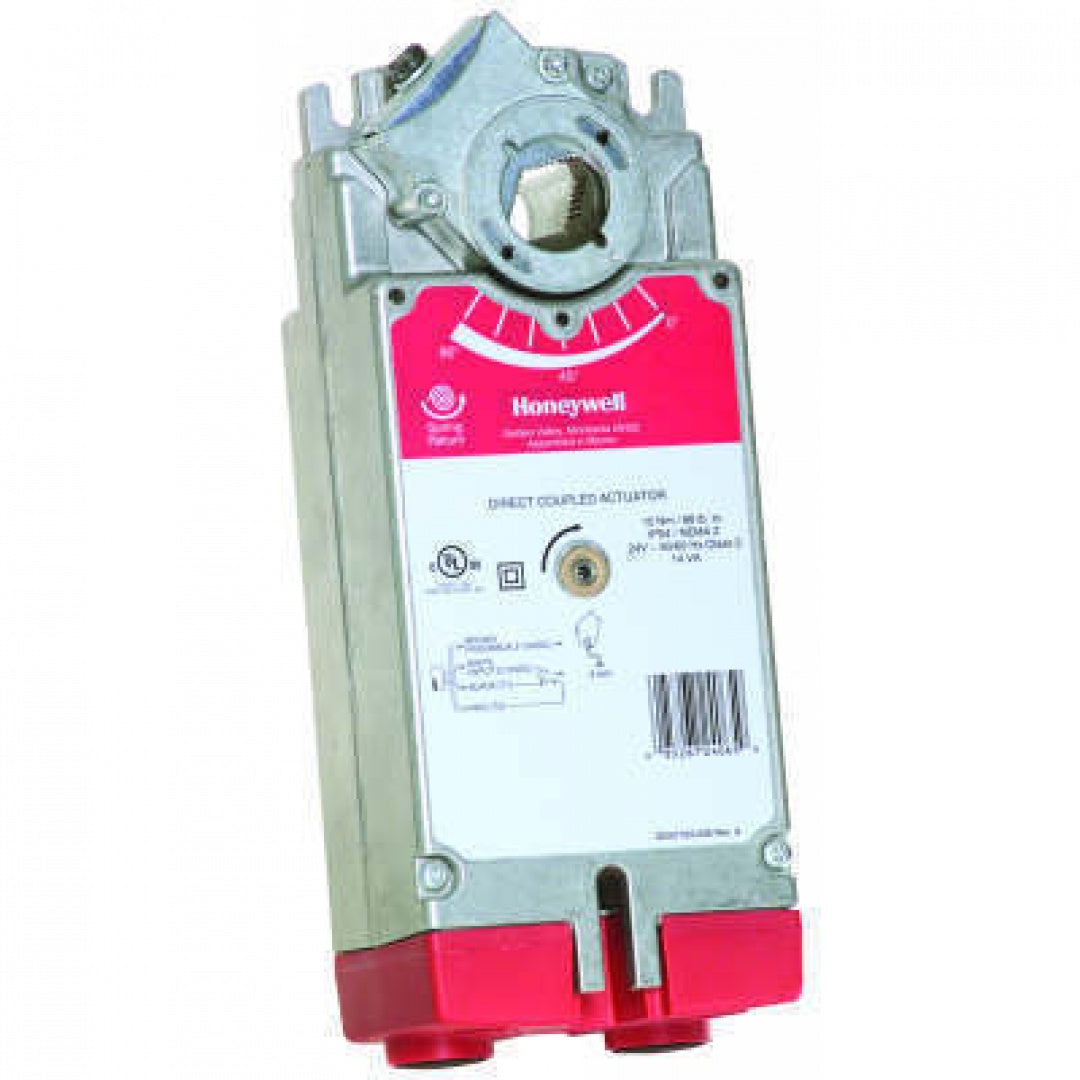

Honeywell MS7510A2008/U Direct-Coupled Spring Return Actuator 88 lb. Torque Rating

Product Description

The Honeywell MS7510A2008/U is a direct-coupled spring return actuator with a torque rating of 88 lb-in. Designed for commercial applications, it is reliable and versatile. It operates within a temperature range of -40 degrees Fahrenheit to 140 degrees Fahrenheit and requires a 24Vac power supply.

• 88 lb-in. spring return torque
• 24Vac power supply
• -40°F to 140°F operating range

Product Highlights

The Honeywell MS7510A2008/U actuator is ideal for controlling air dampers, handlers, ventilation flaps, louvers, and ball valves. It supports both on/off and modulating controls and meets UL and CE compliance standards.

Product Information

Standard Information

• Brand: Honeywell
• Model: MS7510A2008/U
• Country of Origin: United States

Technical Specifications

• Torque: 88 lb-in. (10 Nm)
• Power Supply: 24Vac
• Operating Temperature Range: -40°F to 140°F
• Control: On/off, modulating
• Compliance: UL listed (cul), CE compliant
• Use: Air dampers, air handlers, ventilation flaps, louvers, ball valves
• Direction: Field selectable spring return
