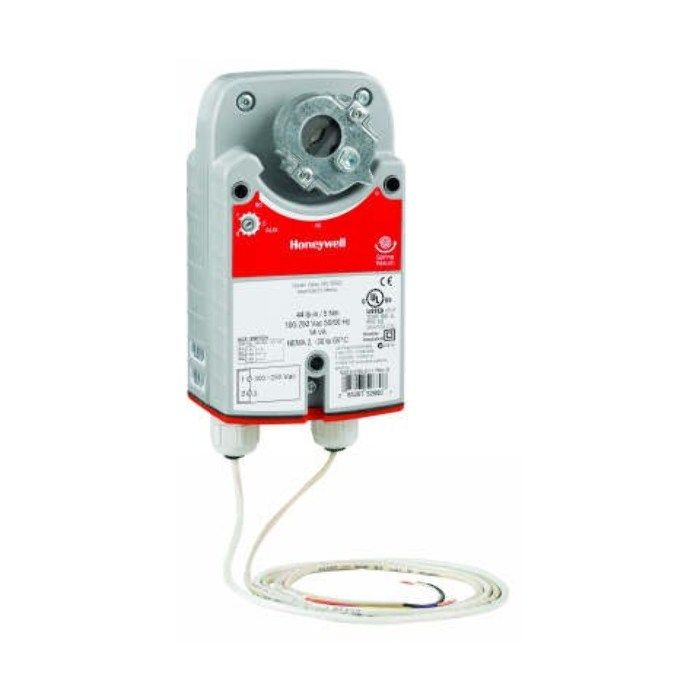

Honeywell MS7505W2030/U Direct Coupled Actuator 44 in-lb

Product Description

The Honeywell MS7505W2030/U is a direct coupled actuator designed for modulating or floating control applications. This actuator operates at twenty-four volts alternating current and features a torque rating of forty-four inch-pounds. The fail-safe closed position ensures reliability in HVAC systems.

• Power supply: 24 VAC
• Operating conditions: -40 F to 150 F
• Self-centering clamping shaft adapter

Product Highlights

The MS7505W2030/U is effective for controlling volume dampers. It can be mounted directly onto the drive shaft or remotely with accessories.

Product Information

Standard Information

• Brand: Honeywell
• MPN: MS7505W2030/U

Technical Specifications

• Power Consumption: 5 VA
• Housing: NEMA 2, IP54
• Shaft Adapter Type: Self-Centering Clamping
• Torque Rating: 44 in-lb (5 Nm)
• Shipping Weight: 6.000 lbs
• Control Type: Floating / Modulating
• Operating Conditions: -40 F to 150 F ( -40 C to 65 C)
