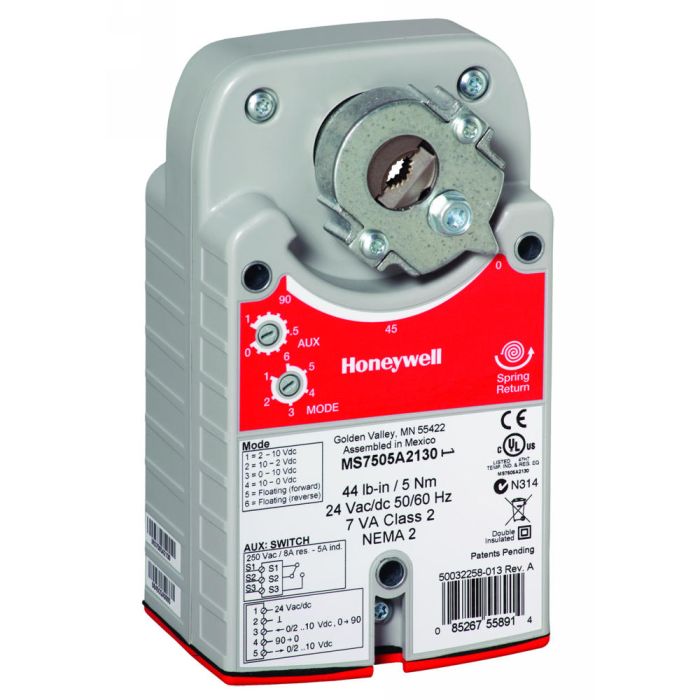

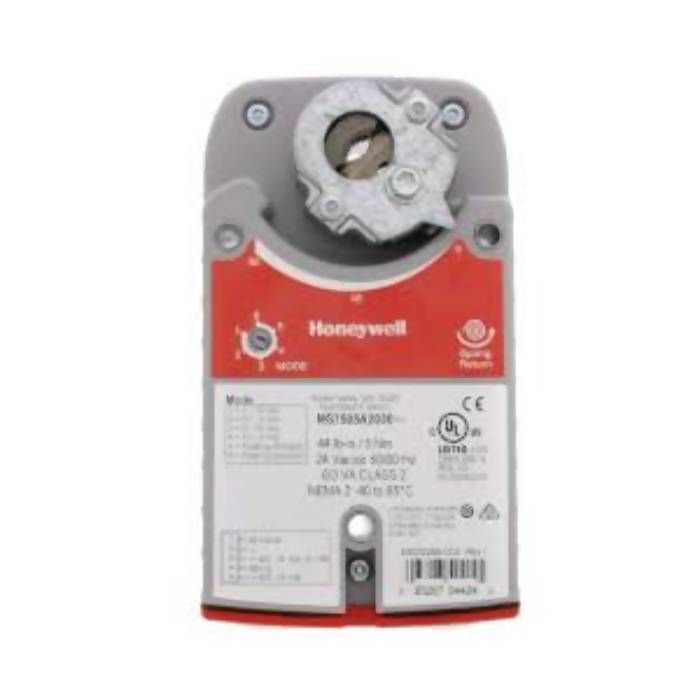

Honeywell MS7505A2130/U Direct Coupled Actuator 44 in-lb

Product Description

The Honeywell MS7505A2130/U is a direct coupled actuator designed for HVAC systems. This model provides a torque of forty-four inch-pounds, suitable for effective control in various applications. It operates on twenty-four VAC and includes fail-safe features along with end switches for reliable performance.

• Direct installation on the drive shaft or remote mounting options available.
• Compatible with quarter-turn rotary valves, including ball and butterfly types.
• Designed for operation in diverse environmental conditions.

Product Highlights

This actuator is suitable for modulating and floating control, enhancing system reliability and efficiency.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: MS7505A2130/U

Technical Specifications

• Housing: NEMA 2, IP54
• Power Consumption: 5 VA
• Shaft Adapter Type: Self-Centering Clamping
• Operating Conditions: -40 F To 150 F (-40 C To 65 C)
