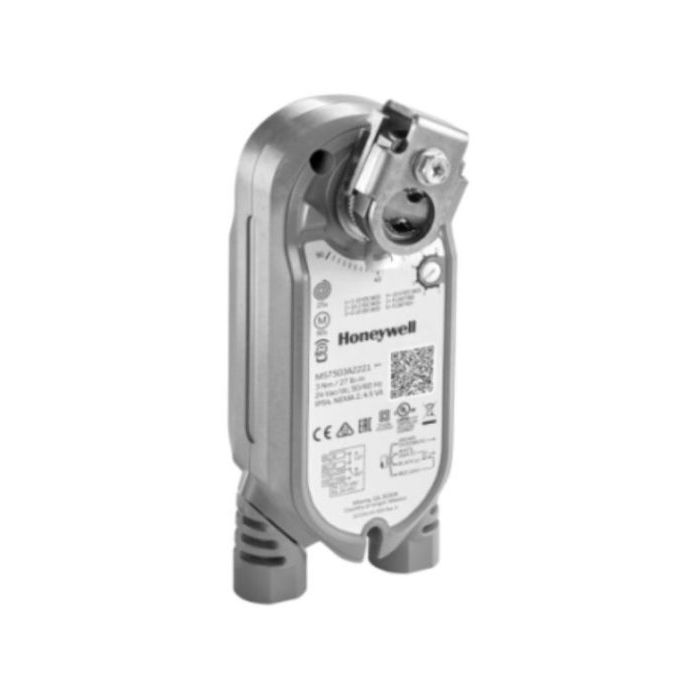

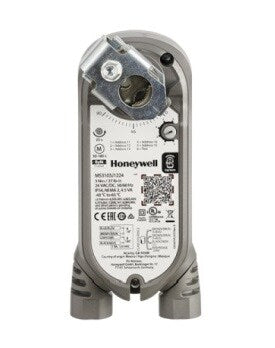

Honeywell MS7503A2223 Direct Coupled Actuator 27 in-lb Torque

Product Description

The Honeywell MS7503A2223 is a direct-coupled actuator designed for precise control in various applications. It features a torque of twenty-seven in-lb and operates with a twenty-four VAC power supply. This actuator supports floating, analog, and two-position control signals, making it versatile for different setups. It includes feedback capabilities and an auxiliary switch for enhanced functionality. The unit is equipped with a three-foot cable for easy wiring and offers overload protection to ensure reliable performance.

• Torque: twenty-seven in-lb
• Control Signal: Floating, Analog, Two Position
• Enclosure Rating: NEMA 2 (IP54)

Product Highlights

The Honeywell MS7503A2223 actuator is ideal for HVAC applications where precise control of air flows or other operations is necessary.

Product Information

Standard Information

• Brand: Honeywell
• Item Number: MS7503A2223

Technical Specifications

• Torque: twenty-seven in-lb
• Supply Voltage: twenty-four VAC ± twenty percent @ fifty/sixty Hz class 2 transformer, twenty-four VDC ± twenty percent/-ten percent
• Control Signal: Floating, Analog, Two Position
• Voltage Output: two to ten VDC, zero (two) to ten VDC, ten to zero (two) VDC
• Input Impedance: ninety-five kOhm minimum
• Wiring: three-foot cable, eighteen AWG
• Rotation: ninety-five degrees ± three degrees
• Operating Temperature: minus forty degrees C to one hundred fifty degrees C
• Operating Humidity: five to ninety-five percent RH
• Enclosure Rating: NEMA 2 (IP54)
• Approvals: UL60730, IEC 60730-1 and Part 2-14, UL1097 for Double Insulation, CE Certification Low Voltage Directive 2014/35/EU, CE EMC 2004/108/EC
• Weight: 1.7 lbs
• Power Consumption: four VA Driving, two VA Holding
• Operating Conditions: minus forty F to one hundred fifty F (minus forty C to sixty-five C)
• Shaft Adapter: U-Bolt
• Housing: NEMA 2, IP54
• Auxiliary Switch: two x SPST
