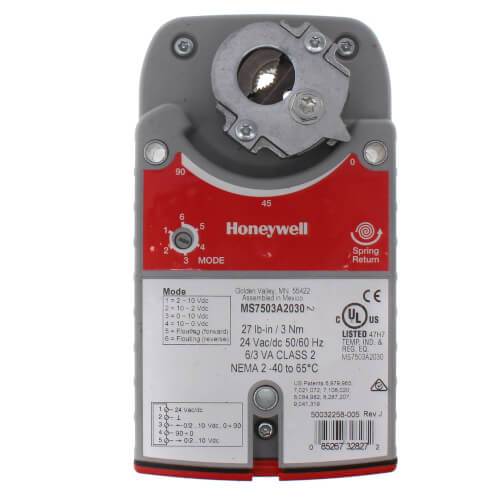

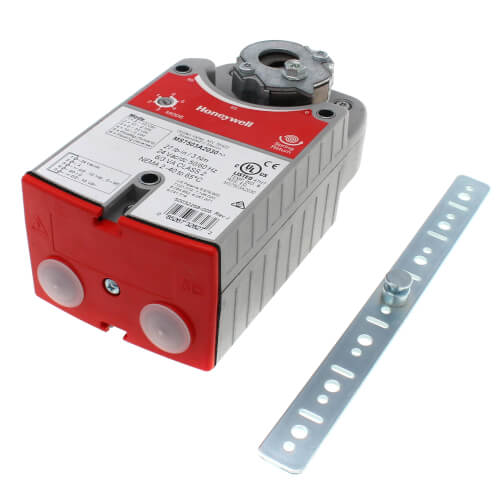

Honeywell MS7503A2130 Damper Actuator Spring Return 27 lb-in Direct Coupled

Product Description

The Honeywell MS7503A2130 damper actuator is a versatile and reliable component designed to deliver precise control for various HVAC applications. This actuator is suitable for air dampers, air handlers, ventilation flaps, louvers, and ball valves.

• Spring return functionality with 27 lb-in torque.
• Direct-coupled, line voltage actuator.
• Accepts on/off (SPDT) or modulating (0/2-10 Vdc) control.

Product Highlights

Ideal for a range of HVAC applications, the MS7503A2130 offers precise control with its spring return feature and various signal options. This product ensures efficient and accurate measurement and control in demanding environments.

Product Information

Standard Information

• Manufacturer: Honeywell
• Brand: Honeywell
• Item Number: MS7503A2130

Technical Specifications

• Torque: 27 lb-in
• Spring Return Torque: 27 lb-in
• Control Signal: Floating, SPDT, On/Off, (0)2-10 Vdc
• Supply Voltage: 24 Vac/dc
• Dimensions: 6-81/54 in high x 3-55/84 in wide x 3-5/32 in deep
• Mounting: Direct Coupled
• Environmental Rating: NEMA2
• Ingress Protection Rating: IP54
• Operating Temperature Range: -40°F to 149°F
• Noise Rating: Driving 40 dB(A) at 1m, Holding 20 dB(A) at 1m
• Feedback: (0)2-10 Vdc
• Maximum Stall Torque: 70 lb-in
• Materials: Plenum rated plastic housing
• Shipping Weight: 3.71 lbs
• Dimensions: 10.45 in length x 5.1 in width x 4.35 in height
