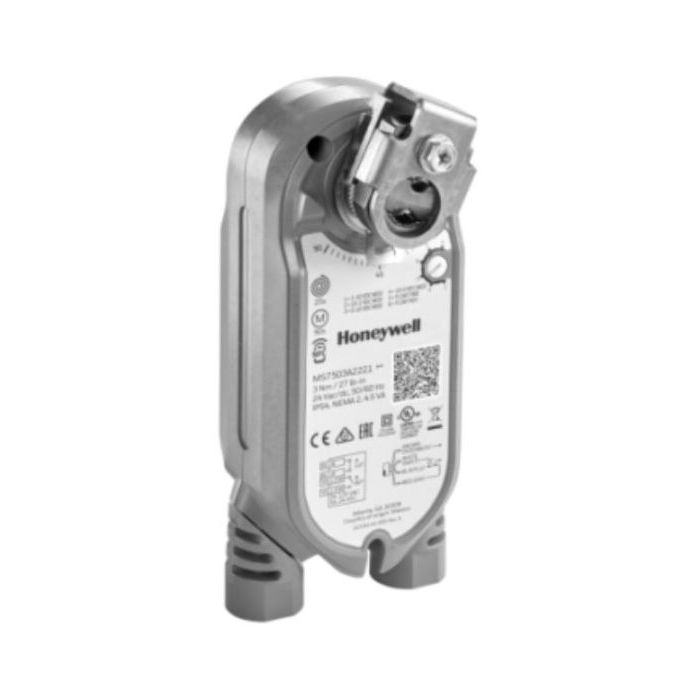

Honeywell MS7503A2023/U Direct Coupled Actuator 27 in-lb Torque

Product Description

The HONEYWELL MS7503A2023/U direct coupled damper actuator provides damper control for spring return applications and is controlled via modulating or Sylk BUS. It delivers 27 in-lb torque and operates on 24 VAC. The actuator is designed for direct mounting to round or square shafts.

• Direct mount to round or square shaft
• NEMA 4 models available
• Overload protection on all models

Product Highlights

The HONEYWELL MS7503A2023/U actuator offers reliable damper control with spring return, modulating control, and direct mounting capabilities.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: MS7503A2023/U
• Country of Origin: United States

Technical Specifications

• Housing: NEMA 2, IP54
• Shaft Adapter: U-Bolt
• Power Consumption: 4 VA Driving, 2 VA Holding
• Operating Conditions: -40 F To 150 F (-40 C To 65 C)
• Torque: 27 in-lb
• Supply Voltage (Nominal): 24 VAC
• Control Signal: Floating,Analog,Two Position
• Supply Voltage: 24 VAC 20% @ 50/60 Hz class 2 transformer, 24 VDC 20%/-10%
• Voltage Output: 2-10 VDC, 0(2)-10 VDC, 10-0(2) VDC
• Input Impedance: 95 kOhm minimum
• Wiring: 3-foot cable, 18 AWG
• Rotation: 95° 3°
• Operating Temperature: -40°C - 150°C
• Operating Humidity: 5 to 95% RH
• Enclosure Rating: NEMA 2 (IP54)
• Approvals: UL60730, IEC 60730-1 and Part 2-14, UL1097 for Double Insulation, CE Certification Low Voltage Directive 2014/35/EU, CE EMC 2004/108/EC, Switch cables are UL certified only
• Fail safe: Spring Return
• Power supply: 24 VAC/VDC
• Product category: Dampers & Actuators
• Product subcategory: Spring Return Damper Actuators
• Running time: 90 Second
• Short desc: Direct Coupled Actuator, 27 lbs-Inch, Spring Return, 24 VAC, Modulating, Floating, 2-Position, No Switch, Feedback
• Type: Rotary Damper Actuator - Fail-Safe
• Brand: HONEYWELL
• Condition: New
• Country of Origin: United States
• Manufacturer: Honeywell
• Unit of Measurement: EA (Each)
• Production Status: Active
