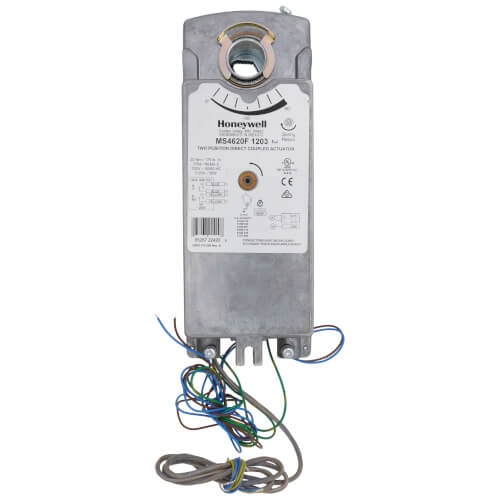

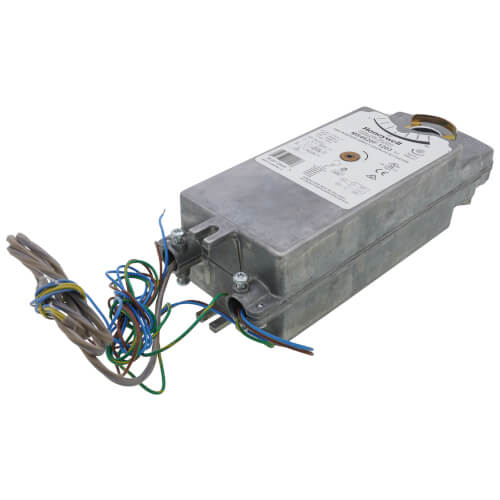

Honeywell MS4620F1203 Two Position Damper Actuator 230v 175 lb-in

Product Description

The Honeywell MS4620F1203 is a reliable two-position damper actuator designed for fire and smoke control applications. This device features a spring return mechanism ensuring safety by reverting to a default position in case of emergencies. With 230V power and 175 lb-in torque, it provides consistent performance in demanding environments.

• Fire and smoke control function
• Spring return for fail-safe operation
• 230V power with 175 lb-in torque

Product Highlights

This Honeywell damper actuator is equipped with an integral junction box and accepts on/off signals from a single-pole, single-throw (SPST) controller. It is designed for smoke control systems needing UL555S ratings up to 350°F. The patented design reduces power consumption and eliminates the need for limit switches.

Product Information

Standard Information

• Brand: Honeywell
• MPN: MS4620F1203

Technical Specifications

• Actuator Type: Damper, Valve
• Application Type: Fire and Smoke
• Fail Safe Mode: Spring Return
• Control Signal: 2 position, SPST
• Supply Voltage: 230V
• Torque: 175 lb-in
• Operating Temperature Range: -40°F to 130°F
• Dimensions: 9.72 inches high x 3.94 inches wide x 2.95 inches deep
