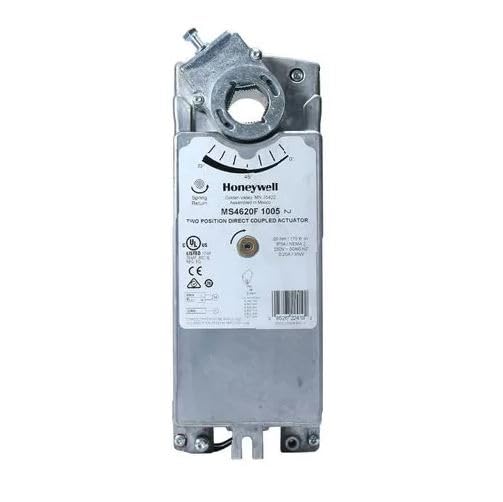

Honeywell MS4620F1005 Two Position Damper Actuator 230V Fire and Smoke Applications

Product Description

The Honeywell MS4620F1005 Two Position Damper Actuator is engineered for reliable operation in fire and smoke applications. Robustly built to handle environments requiring UL555S up to 350°F, this actuator provides efficient functionality with its 230 Vac power input and spring return mechanism.

• Designed for smoke control systems, ensuring safety and compliance.
• Features a reversible mounting flexibility to support both clockwise and counterclockwise operations.
• Efficient 15-second spring return timing enhances operational reliability.

Product Highlights

This model offers a sturdy die-cast aluminum housing and a self-centering shaft adapter for easy installation and maintenance. Integral high-temperature switches and Teflon lead wires permit safe usage at elevated temperatures.

Product Information

Standard Information

• Brand: Honeywell
• MPN: MS4620F1005

Technical Specifications

• Actuator Type: Damper, Valve
• Application Type: Fire and Smoke
• Supply Voltage: 100 to 250 Vac
• Humidity Range: 5 to 95% RH, non-condensing
• Dimensions: 9.72 inches high x 3.94 inches wide x 2.95 inches deep
• Operating Temperature: -40°F to 130°F
• Weight: 8.51 lbs
