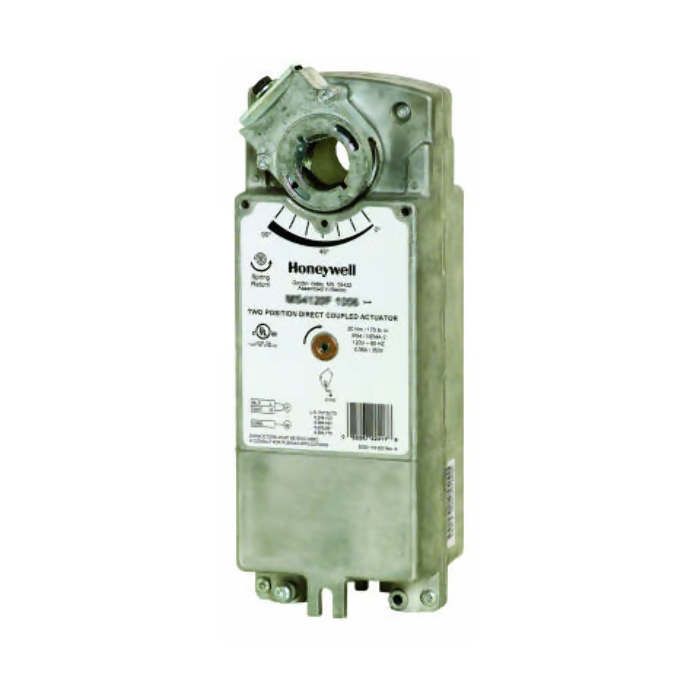

Honeywell MS4120F1006/U Direct Coupled 175 in-lb Spring Return

Product Description

The Honeywell MS4120F1006/U is a direct coupled actuator designed for effective operation in fire and smoke control applications. This actuator operates at 120 VAC and provides a torque of 175 in-lb. It features reversible mounting for both clockwise and counterclockwise spring rotation.

• SPST control signal for straightforward operation.
• Integral spring return for reliable torque delivery.
• Designed for flush mounting to dampers.

Product Highlights

This actuator is suitable for use in smoke control systems and meets Underwriters Laboratories ratings up to 350 degrees Fahrenheit.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: MS4120F1006/U

Technical Specifications

• Operating Voltage: 120 VAC
• Torque Rating: 175 lb-in.
• Power Consumption: 42 VA
• Operating Conditions: -40 F to 130 F
• Dimensions: 10.67 in high x 3.94 in wide x 2.95 in deep
• Weight: 8 lb
• Housing Material: Aluminum
