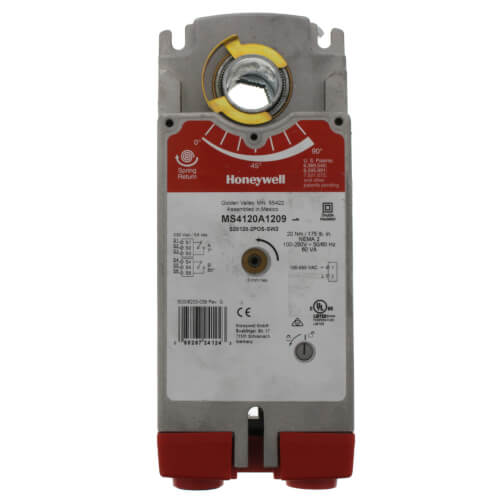

Honeywell MS4120A1209 Two Position Spring Return Direct Coupled Actuator For On/Off Damper Control 175 LB-IN Torque

Product Description

The Honeywell MS4120A1209 is a two-position spring return direct coupled actuator designed for HVAC systems. This actuator operates at 120 volts with a torque rating of one hundred seventy-five inch-pounds. It is ideal for controlling dampers in various applications.

• Robust construction for industrial use
• Spring return mechanism ensures fail-safe operation
• Compatible with a range of control systems

Product Highlights

This actuator is built for durability and efficiency in demanding environments. It supports both floating and modulating control signals, making it versatile for various HVAC applications.

Product Information

Standard Information

• Brand: Honeywell
• MPN: MS4120A1209

Technical Specifications

• Actuator Type: Damper, Valve
• Application Type: HVAC
• Fail Safe Mode: Spring Return
• Control Signal: 2 position, SPST
• Supply Voltage: 100 to 250 Vac
• Internal Auxiliary Switch: 2
• Manual Operation: Manual Crank
• Dimensions: 9.72 inches high x 3.94 inches wide x 2.95 inches deep
