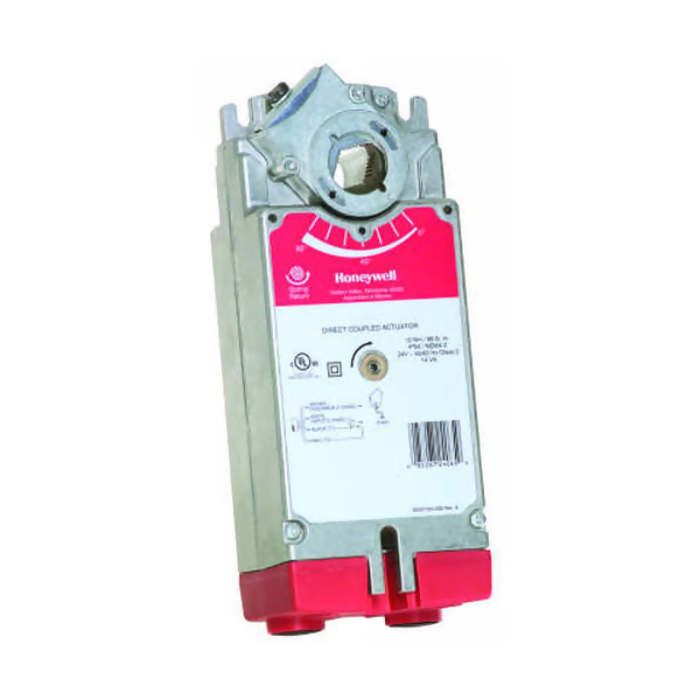

Honeywell MS4110A1002/U Direct Coupled Actuator 88 lb-in

Product Description

The Honeywell MS4110A1002/U is a direct coupled actuator designed for HVAC systems. It operates at 100-250 VAC and provides a powerful 88 lb-in torque. This actuator is suitable for various commercial building control applications, especially for damper control.

• Spring return with two position SPST control.
• Metal housing is built to endure harsh conditions.
• UL listed and plenum rated for safety.

Product Highlights

Efficiently manage HVAC dampers with this reliable actuator.

Product Information

Standard Information

• Brand: Honeywell
• MPN: MS4110A1002/U

Technical Specifications

• Power Consumption: 100-250 VAC
• Auxiliary Switches: Two SPDT
• Operating Temperature: -40 F to 150 F (-40 C to 65 C)
• Electrical Connections: Field wiring 14-22 AWG to screw terminals under the removable access cover
• Housing: Self-centering shaft adapter for shaft coupling
