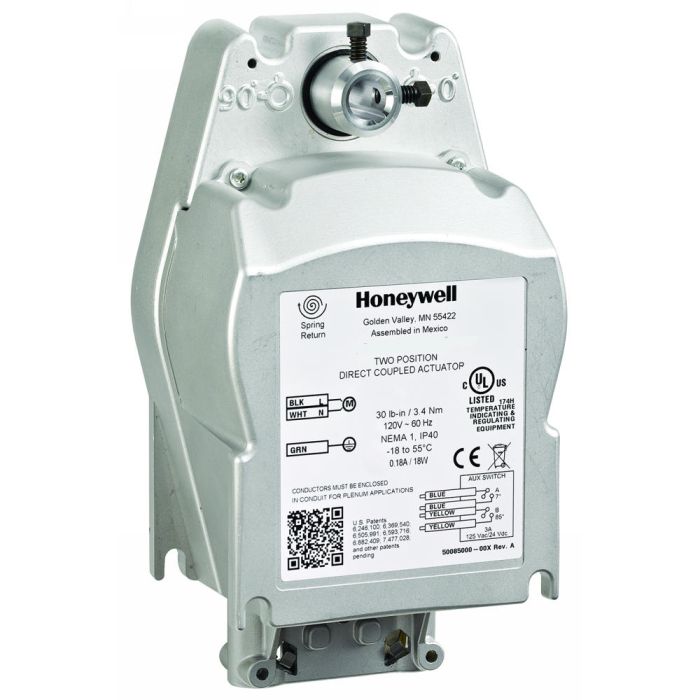

Honeywell MS4104F1010/U Direct Coupled 30 in-lb Spring Return

Product Description

The Honeywell MS4104F1010/U is a direct coupled actuator designed for use in HVAC systems. This model operates at 120 VAC and provides 30 in-lb torque with a spring return feature. It is suitable for controlling fire and smoke dampers, ensuring proper functionality and safety in various building environments.

• Reversible mounting for flexible installation.
• Integral spring return for reliable operation.
• Designed for use in smoke control systems.

Product Highlights

This actuator features a fifteen-second spring return timing and operates reliably in a range of temperatures up to three hundred fifty degrees Fahrenheit.

Product Information

Standard Information

• Brand: Honeywell
• MPN: MS4104F1010/U

Technical Specifications

• Power Consumption: 21.6 VA
• Operating Conditions: 0 F to 130 F (-18 C to 55 C)
• Electrical Connection: Color-coded leads
• Torque Rating: 30 in-lb
• Dimensions: 5.13 in W x 3.32 in D x 8.9 in H
• Material: Aluminum
• Mounting Type: Direct Coupled
