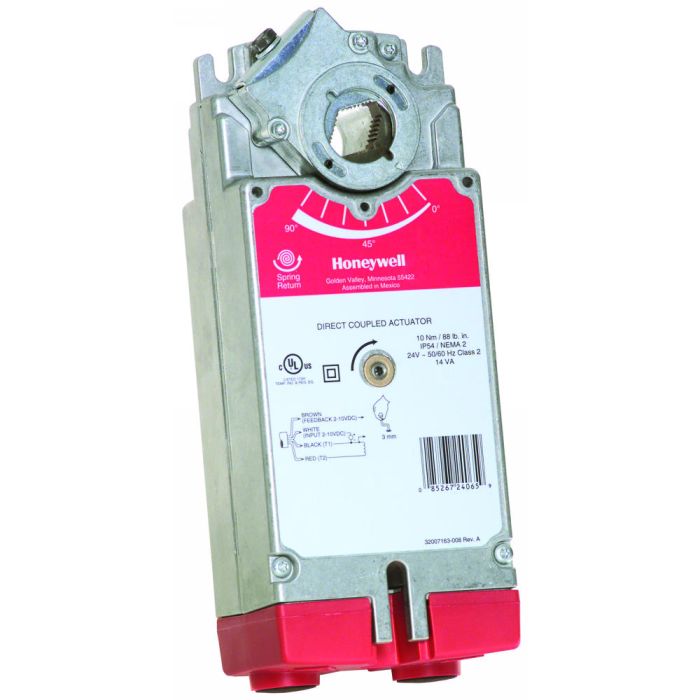

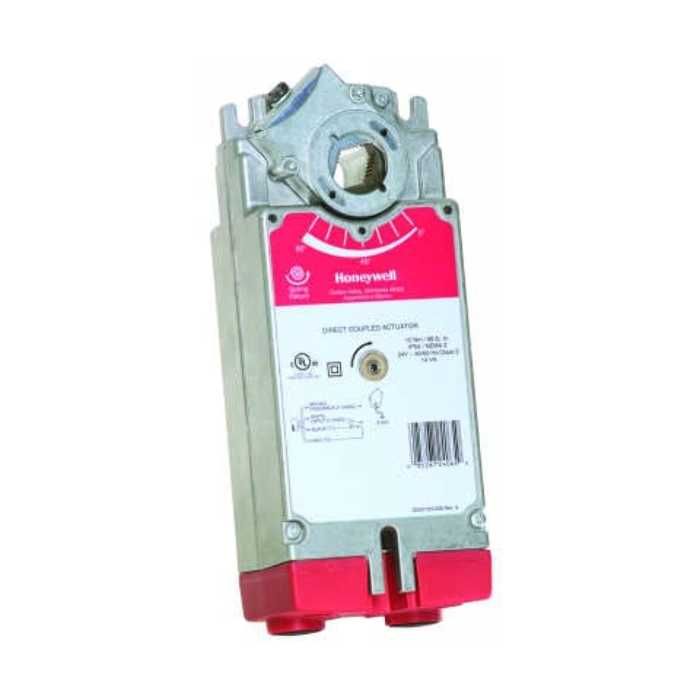

Honeywell MS3120J1007/U Direct Coupled Actuator, 175 lb-in

Product Description

The Honeywell MS3120J1007/U is a direct coupled actuator designed to provide reliable performance in HVAC systems. It features a torque rating of 175 lb-in and operates on a power supply of 24 VAC. This actuator is sylk-enabled, making it suitable for various commercial building controls.

• Spring return configuration with field-selectable direction
• Self-centering shaft adapter suitable for a range of shaft sizes
• Metal housing with built-in mechanical end limits

Product Highlights

Durable actuator for HVAC applications with features that enhance connectivity and ease of installation.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: MS3120J1007/U

Technical Specifications

• Power Consumption: 24 VAC
• Auxiliary Switches: Two SPDT
• Operating Temperature: -40 F to 150 F (-40 C to 65 C)
• Electrical Connections: Field wiring 14-22 AWG to screw terminals, located under removable access cover
• Housing: Self-centering shaft adapter (shaft coupling)
